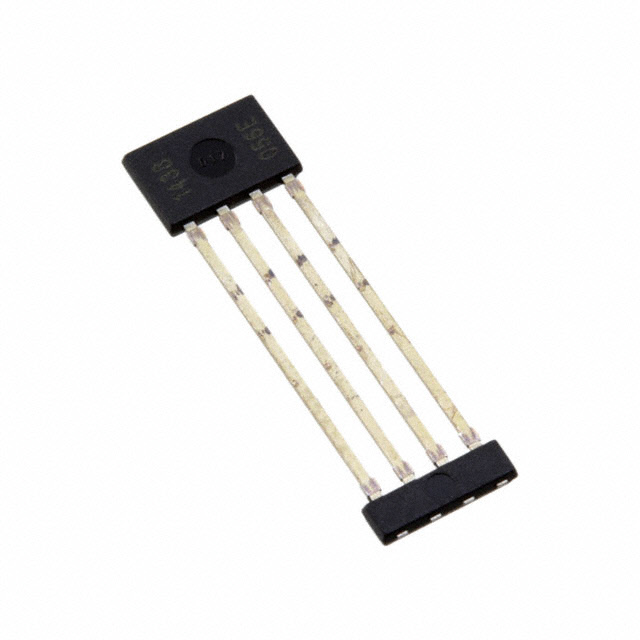

A1351LKTTN-T

A1351LKTTN-T

Part Number
A1351LKTTN-T
Manufacturer Allegro MicroSystems
Other Part Numbers
620-1228-2-ND
620-1228-1-ND
620-1228-2
620-1228-6-ND
620-1228-1
620-1228-6
620-1228-6INACTIVE
A1351LKTTNT
Description SENSOR HALL EFFECT PWM 4SIP
Detailed Description Hall Effect Sensor Single Axis 4-SIP
Datasheet Datasheet

Product Attributes

Category
Manufacturer Allegro MicroSystems
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Obsolete
Features Programmable, Temperature Compensated
Package / Case 4-SIP Module
Output Type PWM
Mounting Type Through Hole
Axis Single
Operating Temperature -40°C ~ 125°C
Voltage - Supply 4.5V ~ 5.5V
Bandwidth 150Hz
Technology Hall Effect
Resolution 11 b
Current - Output (Max) 7.8mA (Typ)
Current - Supply (Max) 10mA
Supplier Device Package 4-SIP

Documents & Media

RESOURCE TYPE LINK
Datasheets A1351LKTTN-T
Datasheets Tape Change 27/Jan/2023

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
