A3950SEUTR-T

A3950SEUTR-T

Part Number	A3950SEUTR-T
Manufacturer	Allegro MicroSystems
Other Part Numbers	620-1296-2-ND 620-1296-1-ND 620-1296-6-ND A3950SEUTR-T-ND 620-1296-6 620-1296-2 A3950SEUTRT 620-1296-1
Description	IC MOTOR DRIVER 8V-36V 16QFN
Detailed Description	Motor Driver DMOS Parallel 16-QFN (4x4)
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Motor Drivers, Controllers
Manufacturer		Allegro MicroSystems
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

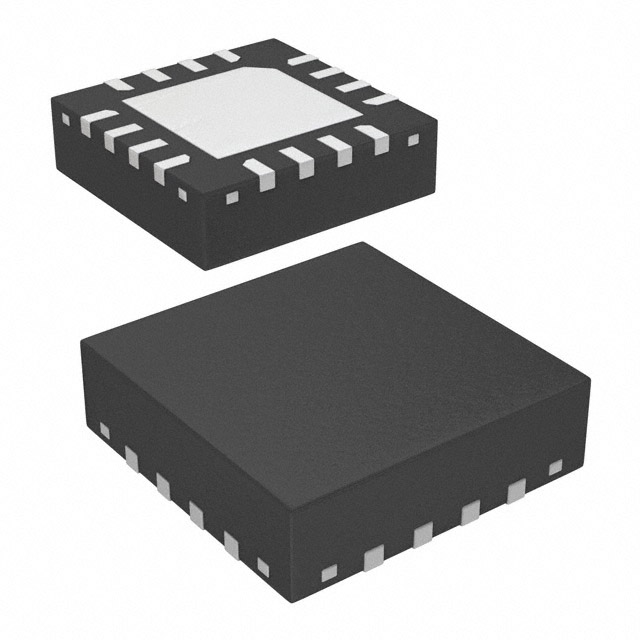

Package / Case		16-WQFN Exposed Pad
Mounting Type		Surface Mount
Function		Driver - Fully Integrated, Control and Power Stage
Current - Output		2.8A
Interface		Parallel
Operating Temperature		-20°C ~ 150°C (TJ)
Output Configuration		Half Bridge (2)
Voltage - Supply		8V ~ 36V
Applications		General Purpose
Technology		DMOS
Voltage - Load		8V ~ 36V
Supplier Device Package		16-QFN (4x4)
Motor Type - AC, DC		Brushed DC

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Tape Change 27/Jan/2023

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 4559

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$2.86	$2.86
Total Amount: $2.86

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
1,500	$1.51	$2,265.00
3,000	$1.44	$4,320.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$2.86	$2.86
10	$2.57	$25.70
25	$2.43	$60.75
100	$2.11	$211.00
250	$2.00	$500.00
500	$1.79	$895.00
