A4919GETTR-T

Part Number
A4919GETTR-T
Manufacturer Allegro MicroSystems
Other Part Numbers
620-1978-2-ND
620-1978-1-ND
620-1978-6-ND
620-1978-1
620-1978-2
620-1978-6
Description IC GATE DRVR HI/LOW SIDE 28QFN
Detailed Description High-Side or Low-Side Gate Driver IC TTL 28-QFN (5x5)
Manufacturer Standard Lead Time 20 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Allegro MicroSystems
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

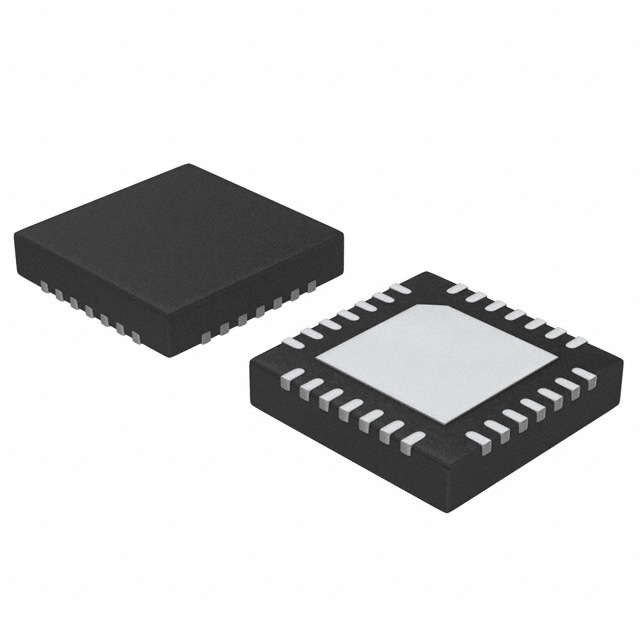

Package / Case 28-VFQFN Exposed Pad
Mounting Type Surface Mount
Operating Temperature -40°C ~ 105°C (TA)
Voltage - Supply 5.5V ~ 50V
Input Type TTL
Supplier Device Package 28-QFN (5x5)
Rise / Fall Time (Typ) 35ns, 20ns
Channel Type 3-Phase
Driven Configuration High-Side or Low-Side
Number of Drivers 6
Gate Type N-Channel MOSFET
Logic Voltage - VIL, VIH 0.8V, 1.5V
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets ASE Assembly Addition 26/Apr/2023
Datasheets Tape Change 27/Jan/2023

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 30418

Can ship immediately.
