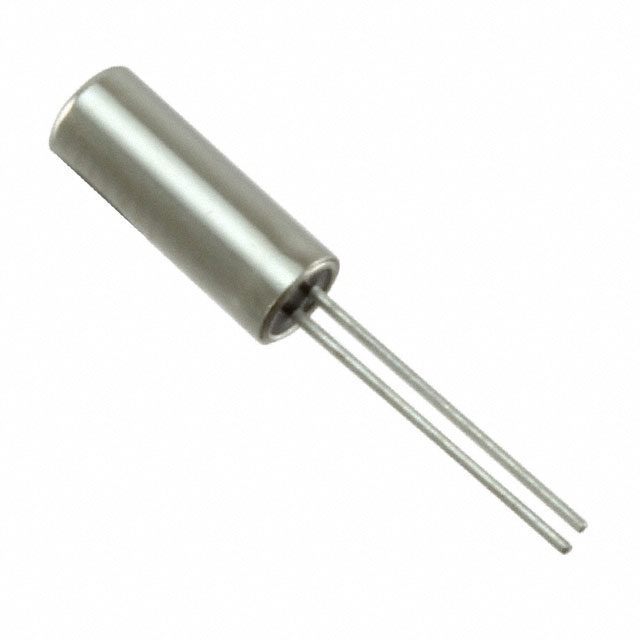

AB308-12.000MHZ

AB308-12.000MHZ

Part Number	AB308-12.000MHZ
Manufacturer	Abracon
Other Part Numbers	535-14116-ND AB308-12.000MHZ-ND 535-14116
Description	CRYSTAL 12.0000MHZ 16PF TH
Detailed Description	12 MHz ±30ppm Crystal 16pF 50 Ohms Cylindrical Can, Radial
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Abracon
Series		AB308
Packaging		Bulk
Part Status		Active
Package / Case		Cylindrical Can, Radial
Load Capacitance		16pF
Size / Dimension		0.118" Dia x 0.315" L (3.00mm x 8.00mm)
Mounting Type		Through Hole
Type		MHz Crystal
Operating Temperature		-10°C ~ 60°C
Frequency Stability		±50ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.323" (8.20mm)
ESR (Equivalent Series Resistance)		50 Ohms
Frequency		12 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AB308-12.000MHZ
Datasheets		Abracon REACH
Datasheets		AB308.pdf
Datasheets		AB308 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 859

Can ship immediately.
