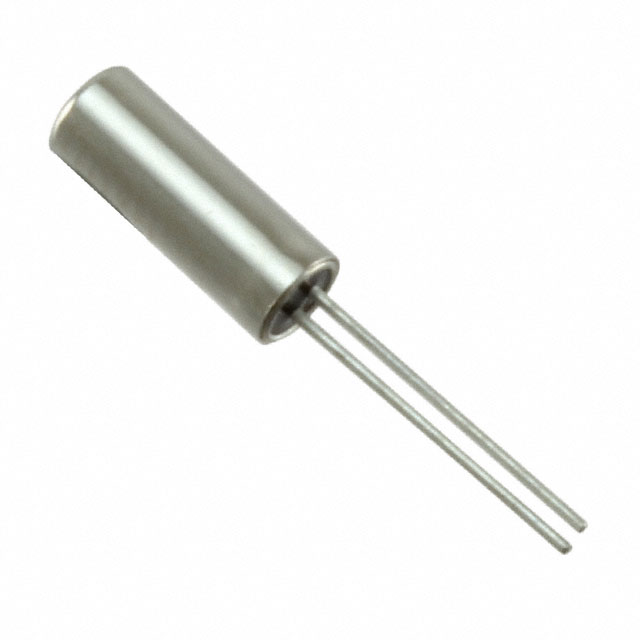

AB308-8.000MHZ

Part Number
AB308-8.000MHZ
Manufacturer Abracon
Other Part Numbers
535-14123-ND
AB308-8.000MHZ-ND
535-14123
2266-AB308-8.000MHZ
Description CRYSTAL 8.0000MHZ 16PF TH
Detailed Description 8 MHz ±30ppm Crystal 16pF 80 Ohms Cylindrical Can, Radial
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Abracon
Series
AB308
Packaging
Bulk
Part Status Active
Package / Case Cylindrical Can, Radial
Load Capacitance 16pF
Size / Dimension 0.118" Dia x 0.315" L (3.00mm x 8.00mm)
Mounting Type Through Hole
Type MHz Crystal
Operating Temperature -10°C ~ 60°C
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Operating Mode Fundamental
Height - Seated (Max) 0.323" (8.20mm)
ESR (Equivalent Series Resistance) 80 Ohms
Frequency 8 MHz

Documents & Media

RESOURCE TYPE LINK
Datasheets AB308-8.000MHZ
Datasheets Abracon REACH
Datasheets AB308.pdf
Datasheets AB308 Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.60.0050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 6452

Can ship immediately.
