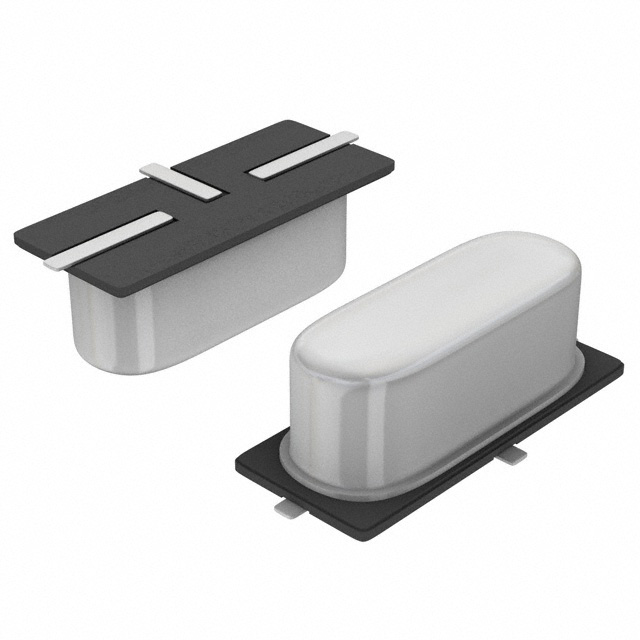

ABLSG-14.7456MHZ-D2Y-T

ABLSG-14.7456MHZ-D2Y-T

Part Number	ABLSG-14.7456MHZ-D2Y-T
Manufacturer	Abracon
Other Part Numbers	535-10614-2-ND 535-10614-1-ND 535-10614-6-ND ABLSG147456MHZD2YT ABLSG-14.7456MHZ-D-2-Y-T 535-10614-6 535-10614-1 535-10614-2
Description	CRYSTAL 14.7456MHZ 18PF SMD
Detailed Description	14.7456 MHz ±20ppm Crystal 18pF 50 Ohms HC-49/US - 3 Lead
Manufacturer Standard Lead Time	25 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Abracon
Series		ABLSG
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		HC-49/US - 3 Lead
Load Capacitance		18pF
Size / Dimension		0.449" L x 0.185" W (11.40mm x 4.70mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±30ppm
Frequency Tolerance		±20ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.165" (4.20mm)
ESR (Equivalent Series Resistance)		50 Ohms
Frequency		14.7456 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ABLSG-14.7456MHZ-D2Y-T
Datasheets		Abracon REACH
Datasheets		ABLSG.pdf
Datasheets		ABLSG Drawing
Datasheets		ABLSG Series Bottom
Datasheets		ABLSG Series Side
Datasheets		ABLSG Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

In Stock: 967

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.64	$0.64
Total Amount: $0.64

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
1,000	$0.34	$340.00
3,000	$0.32	$960.00
5,000	$0.31	$1,550.00
10,000	$0.30	$3,000.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.64	$0.64
10	$0.53	$5.30
50	$0.48	$24.00
100	$0.42	$42.00
500	$0.40	$200.00
