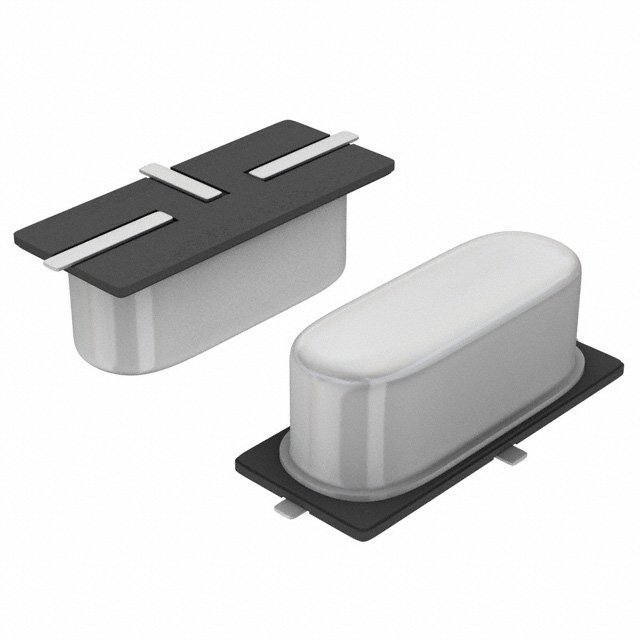

ABLSG-15.000MHZ-D2Y-T

ABLSG-15.000MHZ-D2Y-T

Part Number
ABLSG-15.000MHZ-D2Y-T
Manufacturer Abracon
Other Part Numbers
535-10615-2-ND
535-10615-1-ND
535-10615-6-ND
ABLSG15000MHZD2YT
ABLSG-15.000MHZ-D-2-Y-T
535-10615-6
535-10615-1
535-10615-2
Description CRYSTAL 15.0000MHZ 18PF SMD
Detailed Description 15 MHz ±20ppm Crystal 18pF 50 Ohms HC-49/US - 3 Lead
Manufacturer Standard Lead Time 25 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Abracon
Series
ABLSG
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case HC-49/US - 3 Lead
Load Capacitance 18pF
Size / Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Mounting Type Surface Mount
Type MHz Crystal
Operating Temperature -40°C ~ 85°C
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Operating Mode Fundamental
Height - Seated (Max) 0.165" (4.20mm)
ESR (Equivalent Series Resistance) 50 Ohms
Frequency 15 MHz

Documents & Media

RESOURCE TYPE LINK
Datasheets ABLSG-15.000MHZ-D2Y-T
Datasheets Abracon REACH
Datasheets ABLSG.pdf
Datasheets ABLSG Series Side
Datasheets ABLSG Series Top
Datasheets ABLSG Drawing
Datasheets ABLSG Series Bottom

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.60.0050
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Affected
RoHS Status ROHS3 Compliant
