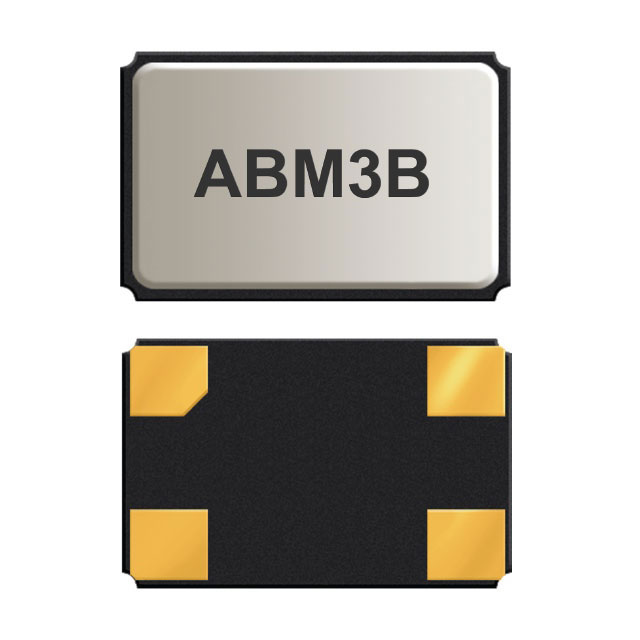

ABM3B-12.800MHZ-15-D1X-T

ABM3B-12.800MHZ-15-D1X-T

Part Number
ABM3B-12.800MHZ-15-D1X-T
Manufacturer Abracon
Other Part Numbers
535-ABM3B-12.800MHZ-15-D1X-TTR-ND
535-ABM3B-12.800MHZ-15-D1X-TCT-ND
535-ABM3B-12.800MHZ-15-D1X-TDKR-ND
-1154-ABM3B-12.800MHZ-15-D1X-TCT
535-ABM3B-12.800MHZ-15-D1X-TCT
535-ABM3B-12.800MHZ-15-D1X-TDKR
-1154-ABM3B-12.800MHZ-15-D1X-TDKR
-1154-ABM3B-12.800MHZ-15-D1X-TTR
535-ABM3B-12.800MHZ-15-D1X-TTR
Description CRYSTAL 12.8000MHZ 15PF SMD
Detailed Description 12.8 MHz ±10ppm Crystal 15pF 70 Ohms 4-SMD, No Lead
Datasheet Datasheet

Product Attributes

Category
Manufacturer Abracon
Series
ABM3B
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 4-SMD, No Lead
Load Capacitance 15pF
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Mounting Type Surface Mount
Type MHz Crystal
Operating Temperature -40°C ~ 85°C
Frequency Stability ±20ppm
Frequency Tolerance ±10ppm
Operating Mode Fundamental
Height - Seated (Max) 0.043" (1.10mm)
ESR (Equivalent Series Resistance) 70 Ohms
Frequency 12.8 MHz

Documents & Media

RESOURCE TYPE LINK
Datasheets ABM3B-12.800MHZ-15-D1X-T

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.60.0050
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 970

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
