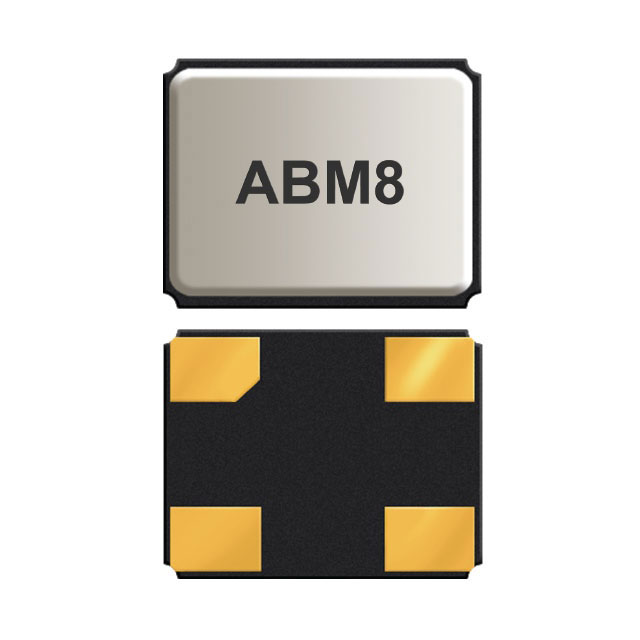

ABM8-20.000MHZ-10-R40-B1U-T

ABM8-20.000MHZ-10-R40-B1U-T

Part Number	ABM8-20.000MHZ-10-R40-B1U-T
Manufacturer	Abracon
Other Part Numbers	535-ABM8-20.000MHZ-10-R40-B1U-TTR-ND 535-ABM8-20.000MHZ-10-R40-B1U-TCT-ND 535-ABM8-20.000MHZ-10-R40-B1U-TDKR-ND -1154-ABM8-20.000MHZ-10-R40-B1U-TTR 535-ABM8-20.000MHZ-10-R40-B1U-TTR -1154-ABM8-20.000MHZ-10-R40-B1U-TCT 535-ABM8-20.000MHZ-10-R40-B1U-TDKR -1154-ABM8-20.000MHZ-10-R40-B1U-TDKR 535-ABM8-20.000MHZ-10-R40-B1U-TCT
Description	CRYSTAL 20.0000MHZ 10PF SMD
Detailed Description	20 MHz ±10ppm Crystal 10pF 40 Ohms 4-SMD, No Lead
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Abracon
Series		ABM8
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		10pF
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-20°C ~ 70°C
Frequency Stability		±10ppm
Frequency Tolerance		±10ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.031" (0.80mm)
ESR (Equivalent Series Resistance)		40 Ohms
Frequency		20 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ABM8-20.000MHZ-10-R40-B1U-T

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 914

Can ship immediately.
