AC05AT0001002JAC00

AC05AT0001002JAC00

Part Number	AC05AT0001002JAC00
Manufacturer	Vishay BC Components
Other Part Numbers	749-1823-1-ND 749-1823-3-ND 749-1823-3 749-1823-1

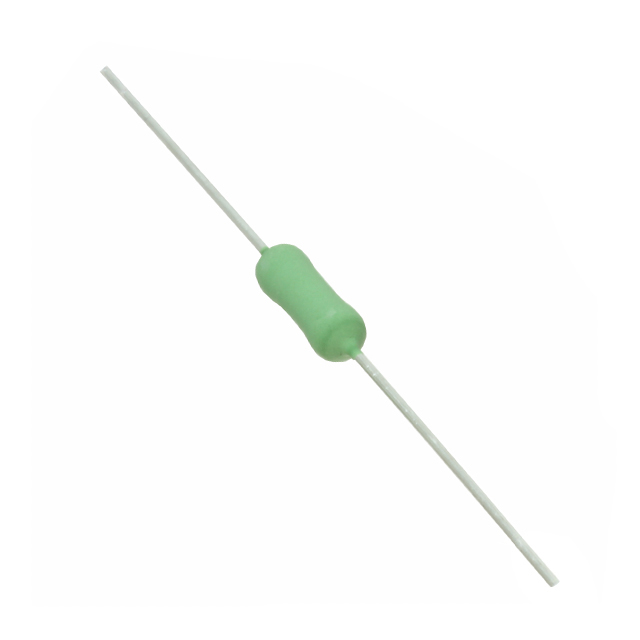

Description	RES 10K OHM 5% 5W AXIAL
Detailed Description	10 kOhms ±5% 5W Through Hole Resistor Axial Automotive AEC-Q200 Wirewound
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Through Hole Resistors
Manufacturer		Vishay BC Components
Series		AC-AT
Packaging		Cut Tape (CT) Tape & Box (TB)
Part Status		Active
Power (Watts)		5W
Tolerance		±5%
Features		Automotive AEC-Q200
Package / Case		Axial
Temperature Coefficient		100/ +180ppm/°C
Size / Dimension		0.295" Dia x 0.709" L (7.50mm x 18.00mm)
Composition		Wirewound
Operating Temperature		-55°C ~ 250°C
Number of Terminations		2
Supplier Device Package		Axial
Resistance		10 kOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AC05AT0001002JAC00

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0080
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant

In Stock: 744

Can ship immediately.
