ACASA1002S5002P100 _ Resistor Networks, Arrays_Resistors

Part Number	ACASA1002S5002P100
Manufacturer	Vishay BC Components
Other Part Numbers	749-1029-2-ND 749-1029-1-ND 749-1029-6-ND 749-1029-6 749-1029-1 749-1029-2 ACASA1002S5002P100-ND

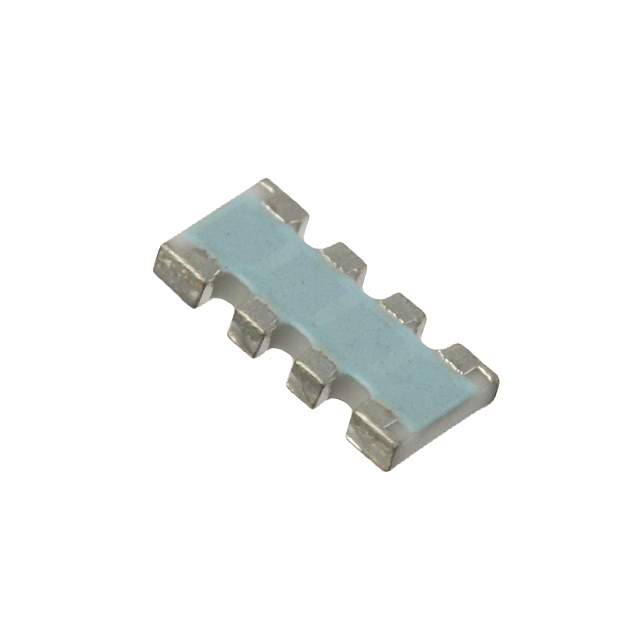

Description	RES ARRAY 4 RES MULT OHM 1206
Detailed Description	10k, 50k Ohm ±0.1% 100mW Power Per Element Isolated 4 Resistor Network/Array ±25ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
Manufacturer Standard Lead Time	14 weeks

Category		Resistors Resistor Networks, Arrays
Manufacturer		Vishay BC Components
Series		ACA - Precision
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Resistance (Ohms)		10k, 50k
Tolerance		±0.1%
Power Per Element		100mW
Circuit Type		Isolated
Number of Pins		8
Package / Case		1206 (3216 Metric), Convex, Long Side Terminals
Temperature Coefficient		±25ppm/°C
Size / Dimension		0.126" L x 0.059" W (3.20mm x 1.50mm)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C
Applications		Voltage Divider (TCR Matched)
Height - Seated (Max)		0.022" (0.55mm)
Resistor Matching Ratio		±0.05%
Resistor-Ratio-Drift		±15ppm/°C
Number of Resistors		4

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
