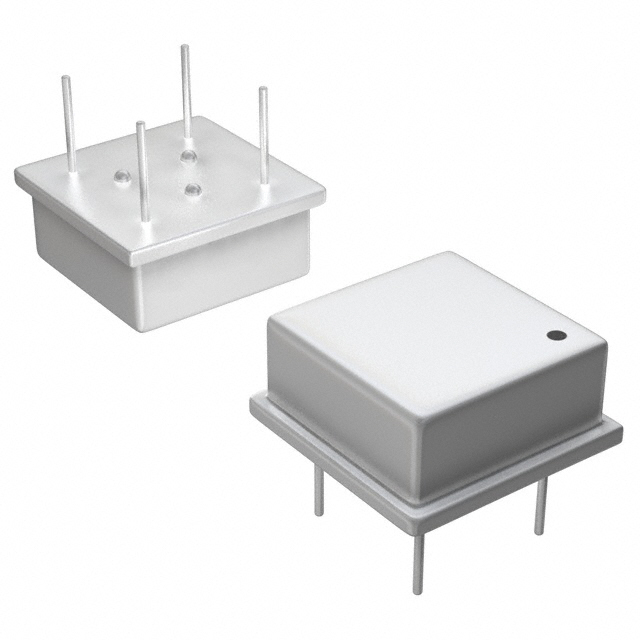

ACHL-27.000MHZ-EK

ACHL-27.000MHZ-EK

Part Number	ACHL-27.000MHZ-EK
Manufacturer	Abracon
Other Part Numbers	535-9194-5-ND 300-9194-5-ND 300-9194-5 535-9194-5
Description	XTAL OSC XO 27.0000MHZ HCMOS TTL
Detailed Description	27 MHz XO (Standard) HCMOS, TTL Oscillator 3.3V 8-DIP, 4 Leads (Half Size, Metal Can)
Manufacturer Standard Lead Time	33 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Abracon
Series		ACHL
Packaging		Tube
Part Status		Active
Package / Case		8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension		0.520" L x 0.520" W (13.20mm x 13.20mm)
Mounting Type		Through Hole
Output		HCMOS, TTL
Type		XO (Standard)
Operating Temperature		-20°C ~ 70°C
Frequency Stability		±30ppm
Voltage - Supply		3.3V
Current - Supply (Max)		40mA
Height - Seated (Max)		0.217" (5.50mm)
Frequency		27 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ACHL-27.000MHZ-EK
Datasheets		Abracon REACH
Datasheets		ACHL Series Internal Assembly 24/Mar/2023
Datasheets		ACHL.pdf
Datasheets		ACHL_SeriesSide
Datasheets		ACHL Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 233

Can ship immediately.
