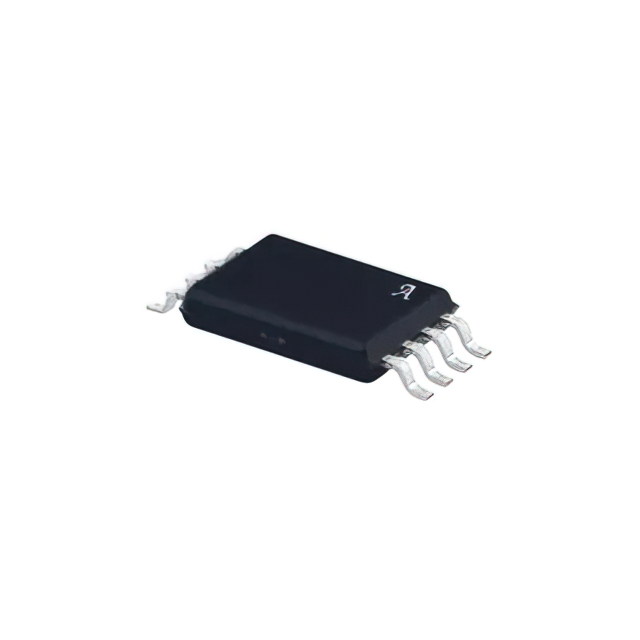

ACS37612LLUATR-010B3

Part Number
ACS37612LLUATR-010B3
Manufacturer Allegro MicroSystems
Other Part Numbers
620-ACS37612LLUATR-010B3-ND
620-ACS37612LLUATR-010B3
Description HALL-BASED STRADDLER CURRENT SEN
Detailed Description Current Sensor 1 Channel Hall Effect Bidirectional 8-TSSOP (0.173", 4.40mm Width)
Manufacturer Standard Lead Time 18 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Allegro MicroSystems
Series
Packaging
Bulk
Part Status Active
Package / Case 8-TSSOP (0.173", 4.40mm Width)
Polarization Bidirectional
Sensitivity 10mV/g
Mounting Type Surface Mount
Output Ratiometric, Voltage
Frequency DC ~ 120kHz
Operating Temperature -40°C ~ 150°C
Voltage - Supply 3V ~ 3.6V
Response Time 3.2µs
Sensor Type Hall Effect
Linearity ±1%
For Measuring AC/DC
Current - Supply (Max) 16mA
Supplier Device Package 8-TSSOP
Grade Automotive
Number of Channels 1
Qualification AEC-Q100

Documents & Media

RESOURCE TYPE LINK
Datasheets ACS37612LLUATR-010B3
Datasheets ASEK37612 Demo Board Manual

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 11329

Can ship immediately.
