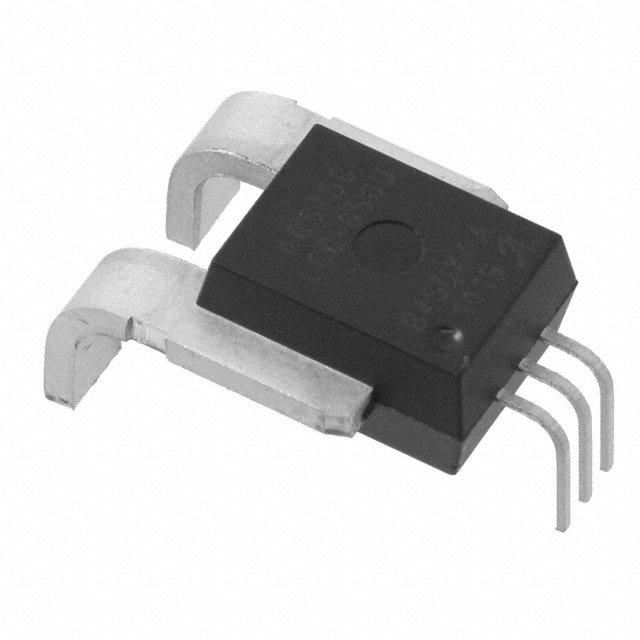

ACS770LCB-100U-PFF-T _ Current Sensors_Sensors, Transducers

Part Number	ACS770LCB-100U-PFF-T
Manufacturer	Allegro MicroSystems
Other Part Numbers	620-1543-5-ND 2156-ACS770LCB-100U-PFF-T ALLALLACS770LCB-100U-PFF-T 620-1543-5
Description	SENSOR CURRENT HALL 100A DC
Detailed Description	Current Sensor 100A 1 Channel Hall Effect, Open Loop Unidirectional 5-CB Formed Leads, PFF
Manufacturer Standard Lead Time	18 weeks

Category		Sensors, Transducers Current Sensors
Manufacturer		Allegro MicroSystems
Series		ACS770
Packaging		Tube
Part Status		Active
Package / Case		5-CB Formed Leads, PFF
Polarization		Unidirectional
Sensitivity		40mV/A
Mounting Type		Through Hole
Output		Ratiometric, Voltage
Frequency		DC ~ 120kHz
Accuracy		±0.6%
Operating Temperature		-40°C ~ 150°C
Voltage - Supply		5V
Response Time		4.6µs
Sensor Type		Hall Effect, Open Loop
Linearity		±1%
For Measuring		DC
Current - Supply (Max)		15mA
Current - Sensing		100A
Supplier Device Package		5-CB Module
Number of Channels		1

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
