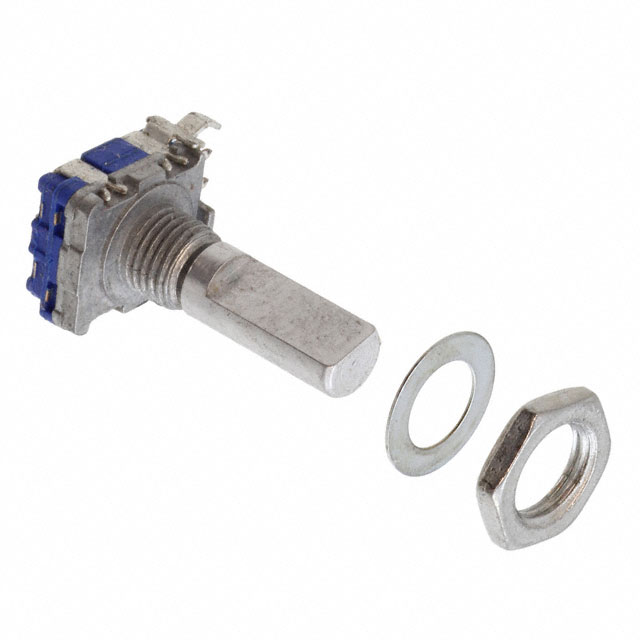

ACZ11BR1E-20FA1-20C

ACZ11BR1E-20FA1-20C

Part Number	ACZ11BR1E-20FA1-20C
Manufacturer	CUI Devices
Other Part Numbers	102-1752-ND 102-1752 ACZ11BR1E20FA120C 074-0611R
Description	ROTARY ENCODER INCREMENT 20PPR
Detailed Description	Rotary Encoder Incremental 20 Quadrature (Incremental) Right Angle
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Encoders
Manufacturer		CUI Devices
Series		ACZ11
Packaging		Box
Part Status		Active
Output Type		Quadrature (Incremental)
Mounting Type		Panel, PCB Through Hole
Orientation		Right Angle
Termination Style		PC Pin
Voltage - Supply		5V
Encoder Type		Incremental
Detent		Yes
Pulses per Revolution		20
Actuator Type		6mm Dia Flatted End
Built in Switch		Yes
Rotational Life (Cycles Min)		30K
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ACZ11BR1E-20FA1-20C
Datasheets		ACZ11BRxE-xxFA1-xxC Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8543.70.4500
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
