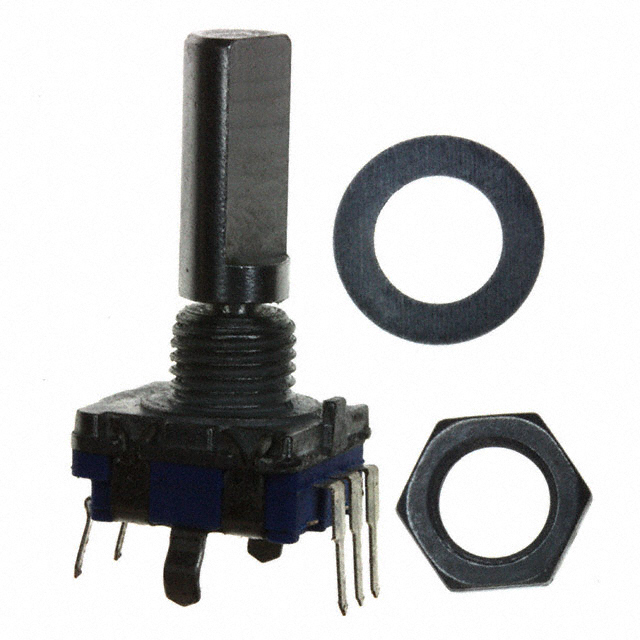

ACZ11BR1E-20FD1-12C

ACZ11BR1E-20FD1-12C

Part Number	ACZ11BR1E-20FD1-12C
Manufacturer	CUI Devices
Other Part Numbers	102-1760-ND 102-1760 074-0618R ACZ11BR1E20FD112C
Description	ROTARY ENCODER INCREMENT 12PPR
Detailed Description	Rotary Encoder Incremental 12 Quadrature (Incremental) Vertical
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Encoders
Manufacturer		CUI Devices
Series		ACZ11
Packaging		Box
Part Status		Active
Output Type		Quadrature (Incremental)
Mounting Type		Panel, PCB Through Hole
Orientation		Vertical
Termination Style		PC Pin
Voltage - Supply		5V
Encoder Type		Incremental
Detent		Yes
Pulses per Revolution		12
Actuator Type		6mm Dia Flatted End
Built in Switch		Yes
Rotational Life (Cycles Min)		30K
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ACZ11BR1E-20FD1-12C

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8543.70.4500
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 12616

Can ship immediately.
