AD9515BCPZ

Part Number	AD9515BCPZ
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	505-AD9515BCPZ-ND -2735-AD9515BCPZ AD9515BCPZ-ND 2156-AD9515BCPZ ANAANAAD9515BCPZ 505-AD9515BCPZ
Description	IC CLK BUFFER 1:2 1.6GHZ 32LFCSP
Detailed Description	Clock Fanout Buffer (Distribution), Divider IC 1:2 1.6 GHz 32-VFQFN Exposed Pad, CSP
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Clock/Timing Clock Buffers, Drivers
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tray
Part Status		Active

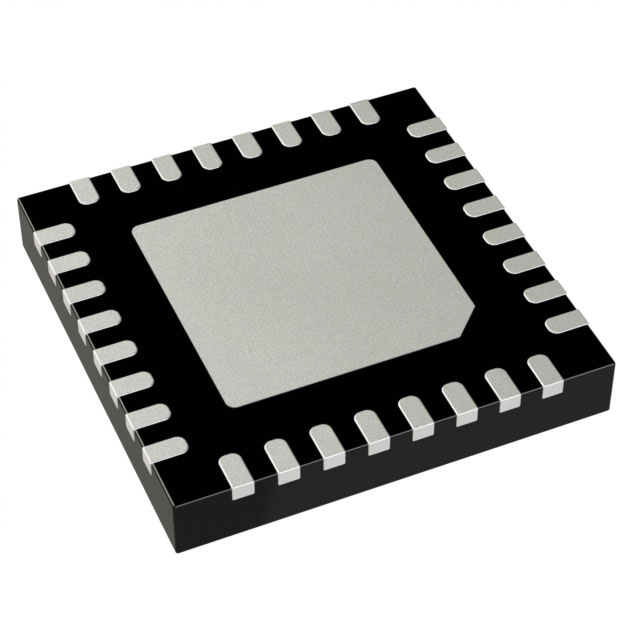

Package / Case		32-VFQFN Exposed Pad, CSP
Number of Circuits		1
Mounting Type		Surface Mount
Output		CMOS, LVDS, LVPECL
Type		Fanout Buffer (Distribution), Divider
Input		Clock
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		3.135V ~ 3.465V
Ratio - Input:Output		1:2
Differential - Input:Output		Yes/Yes
Supplier Device Package		32-LFCSP-VQ (5x5)
Frequency - Max		1.6 GHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AD9515BCPZ
Design Resources		Low Jitter Sampling Clock Generator for High Performance ADCs Using AD9958/9858 and AD9515 (CN0109)
Featured Product		Interactive RF Signal Chain
PCN Assembly/Origin		Mult Changes 09/Jun/2021

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 302

Can ship immediately.
