ADC3542IRSBT _ Analog to Digital Converters (ADC)_Data Acquisition_Integrated Circuits (ICs)

Part Number	ADC3542IRSBT
Manufacturer	Texas Instruments
Other Part Numbers	296-ADC3542IRSBTTR-ND 296-ADC3542IRSBTCT-ND 296-ADC3542IRSBTDKR-ND 296-ADC3542IRSBTTR 296-ADC3542IRSBTCT 296-ADC3542IRSBTDKR
Description	SINGLE-CHANNEL, 14-BIT, 25-MSPS,
Detailed Description	14 Bit Analog to Digital Converter 1 Input 1 SAR 40-WQFN (5x5)
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Data Acquisition Analog to Digital Converters (ADC)
Manufacturer		Texas Instruments
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Temperature Sensor

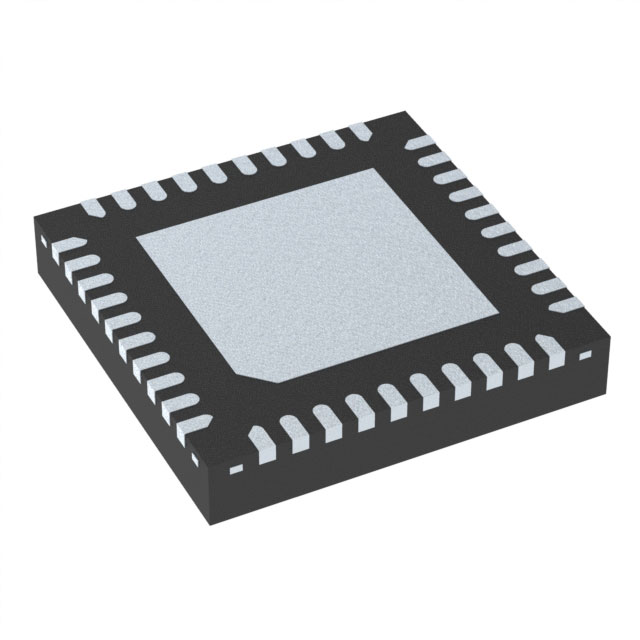

Package / Case		40-WFQFN Exposed Pad
Mounting Type		Surface Mount
Number of Bits		14
Configuration		ADC
Data Interface		Serial, SPI
Reference Type		External, Internal
Operating Temperature		-40°C ~ 105°C
Voltage - Supply, Analog		1.75V ~ 1.85V
Voltage - Supply, Digital		1.75V ~ 1.85V
Sampling Rate (Per Second)		25M
Input Type		Differential
Number of Inputs		1
Supplier Device Package		40-WQFN (5x5)
Architecture		SAR
Ratio - S/H:ADC		0:1
Number of A/D Converters		1

RESOURCE TYPE		LINK
Datasheets		ADC3542IRSBT

ATTRIBUTE		DESCRIPTION
ECCN		3A991C3
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
