ADG713BRUZ _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Part Number	ADG713BRUZ
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	ADG713BRUZ-ND 2156-ADG713BRUZ ANAANAADG713BRUZ
Description	IC SW SPST-NO/NCX4 4OHM 16TSSOP
Detailed Description	4 Circuit IC Switch 1:1 4Ohm 16-TSSOP
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active

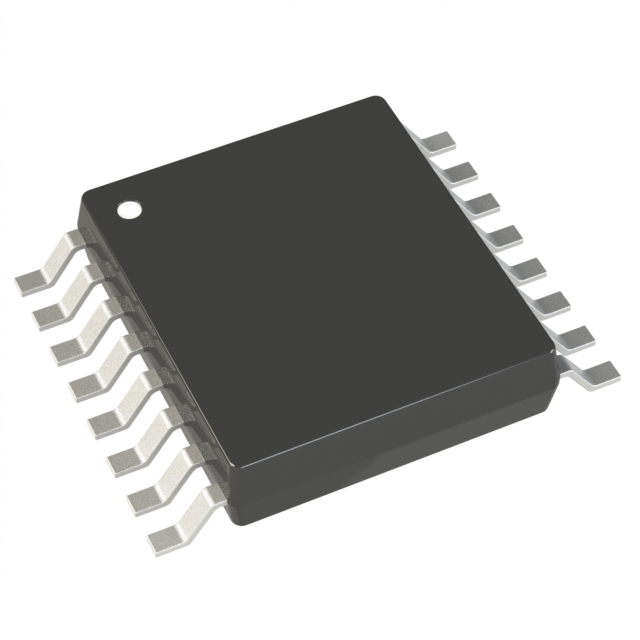

Package / Case		16-TSSOP (0.173", 4.40mm Width)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C (TA)
On-State Resistance (Max)		4Ohm
-3db Bandwidth		200MHz
Supplier Device Package		16-TSSOP
Voltage - Supply, Single (V+)		1.8V ~ 5.5V
Charge Injection		3pC
Crosstalk		-90dB @ 10MHz
Switch Circuit		SPST - NO/NC
Multiplexer/Demultiplexer Circuit		1:1
Switch Time (Ton, Toff) (Max)		11ns, 6ns (Typ)
Channel Capacitance (CS(off), CD(off))		10pF, 10pF
Current - Leakage (IS(off)) (Max)		100pA
Number of Circuits		4

RESOURCE TYPE		LINK
Datasheets		ADG713BRUZ

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
