ADP2302ARDZ-2.5 _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	ADP2302ARDZ-2.5
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	505-ADP2302ARDZ-2.5-ND 505-ADP2302ARDZ-2.5 -2735-ADP2302ARDZ-2.5
Description	IC REG BUCK 2.5V 2A 8SOIC
Detailed Description	Buck Switching Regulator IC Positive Fixed 2.5V 1 Output 2A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series		ADP2302
Packaging		Tube
Part Status		Active

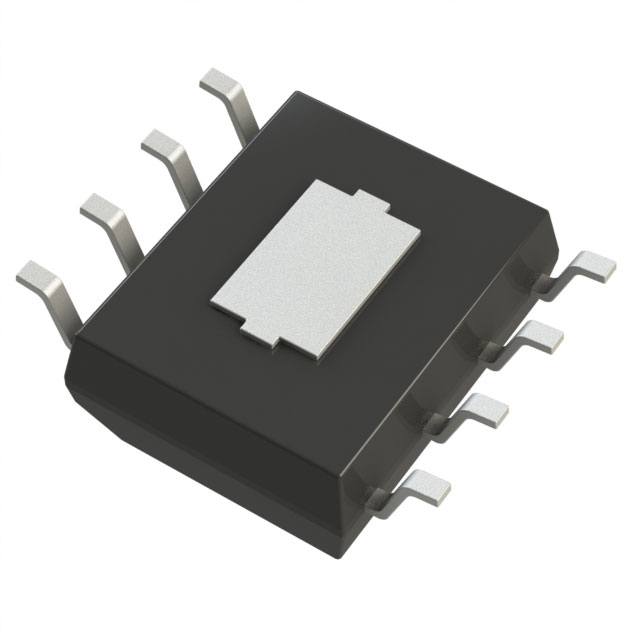

Package / Case		8-SOIC (0.154", 3.90mm Width) Exposed Pad
Output Type		Fixed
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Down
Current - Output		2A
Operating Temperature		-40°C ~ 125°C (TJ)
Output Configuration		Positive
Frequency - Switching		700kHz
Voltage - Input (Max)		20V
Topology		Buck
Supplier Device Package		8-SOIC-EP
Synchronous Rectifier		No
Voltage - Input (Min)		3V
Voltage - Output (Min/Fixed)		2.5V

RESOURCE TYPE		LINK
Datasheets		ADP2302ARDZ-2.5

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
