ADUM4221-1BRIZ

ADUM4221-1BRIZ

Part Number	ADUM4221-1BRIZ
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	505-ADUM4221-1BRIZ-ND 505-ADUM4221-1BRIZ -2735-ADUM4221-1BRIZ
Description	ISO 1/2 BRIDGE DRV W PWM UVLO 7.
Detailed Description	Half-Bridge Gate Driver IC Inverting, Non-Inverting 16-SOIC
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Gate Drivers
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active

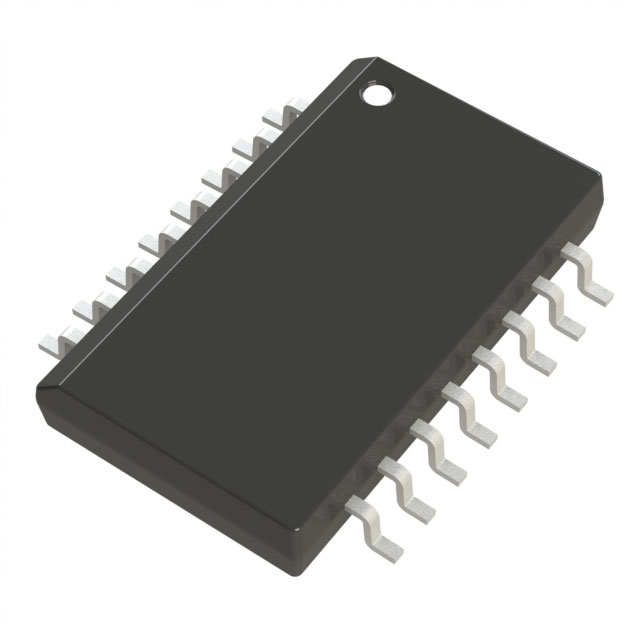

Package / Case		16-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 125°C (TJ)
Voltage - Supply		2.5V ~ 6.5V
Input Type		Inverting, Non-Inverting
Supplier Device Package		16-SOIC
Rise / Fall Time (Typ)		25ns, 25ns
Channel Type		Synchronous
Driven Configuration		Half-Bridge
Number of Drivers		2
Gate Type		IGBT
Logic Voltage - VIL, VIH		1.5V, 3.5V
Current - Peak Output (Source, Sink)		4A, 6A
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ADUM4221-1BRIZ

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 359

Can ship immediately.
