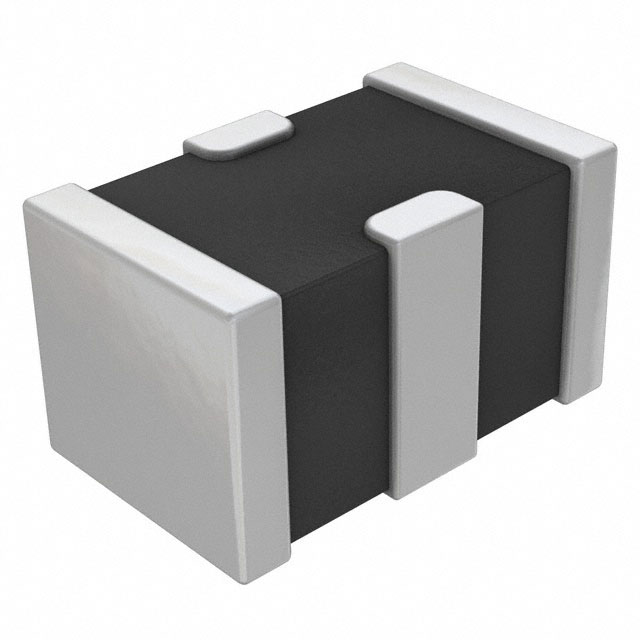

AEMIF-0603-401M-16-T _ EMI/RFI Filters (LC, RC Networks)_Filters

Part Number	AEMIF-0603-401M-16-T
Manufacturer	Abracon
Other Part Numbers	535-12763-2-ND -535-12763-1 535-12763-2 -535-12763-2 535-12763-1
Description	FILTER RC(PI) 0.8 OHM SMD
Detailed Description	RC (Pi) EMI Filter 2nd Order Low Pass 1 Channel R = 0.8Ohms 300 mA 0603 (1608 Metric)

Category		Filters EMI/RFI Filters (LC, RC Networks)
Manufacturer		Abracon
Series		AEMIF-0603
Packaging		Tape & Reel (TR)
Part Status		Obsolete
Voltage - Rated		16V
Package / Case		0603 (1608 Metric)
Size / Dimension		0.063" L x 0.032" W (1.60mm x 0.80mm)
Mounting Type		Surface Mount
Type		Low Pass
Operating Temperature		-40°C ~ 85°C
Values		R = 0.8Ohms
Height		0.031" (0.79mm)
Attenuation Value		20dB @ 800MHz ~ 2GHz
Filter Order		2nd
Applications		General Purpose
Technology		RC (Pi)
Center / Cutoff Frequency		400MHz (Cutoff)
Resistance - Channel (Ohms)		0.8
ESD Protection		No
Number of Channels		1
Current		300 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
