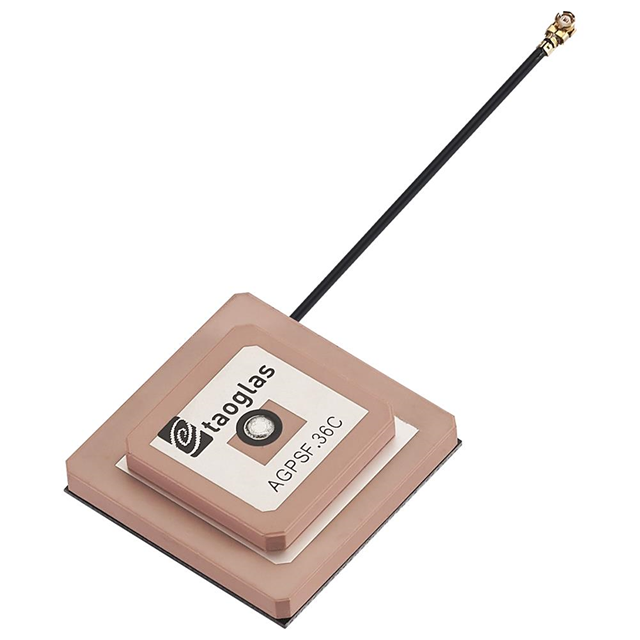

AGPSF.36C.07.0100C

AGPSF.36C.07.0100C

Part Number	AGPSF.36C.07.0100C
Manufacturer	Taoglas
Other Part Numbers	931-AGPSF.36C.07.0100C-ND 931-AGPSF.36C.07.0100C 2266-AGPSF.36C.07.0100C
Description	ACTIVE GPS L1/L2 LOW PROFILE STA
Detailed Description	1.2267GHz, 1.575GHz GPS Ceramic Patch RF Antenna 1.2257GHz ~ 1.2277GHz, 1.574GHz ~ 1.576GHz 2.73dBi, 3.57dBi U.FL (UMCC), IPEX MHF1 Surface Mount
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series
Packaging		Tray
Part Status		Not For New Designs
Features		Cable - 100mm, LNA, Filter
Mounting Type		Surface Mount
Frequency Range		1.2257GHz ~ 1.2277GHz, 1.574GHz ~ 1.576GHz
Applications		GPS
Gain		2.73dBi, 3.57dBi
Termination		U.FL (UMCC), IPEX MHF1
Number of Bands		2
Antenna Type		Ceramic Patch
Height (Max)		0.433" (11.00mm)
Return Loss		-10dB, -10dB
Frequency Group		UHF (1GHz ~ 2GHz)
Frequency (Center/Band)		1.2267GHz, 1.575GHz
RF Family/Standard		Navigation

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AGPSF.36C.07.0100C
Datasheets		Taoglas Limited RoHS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		7A994
HTSUS		8529.10.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 231

Can ship immediately.

Not recommended for new design, minimums may apply.
