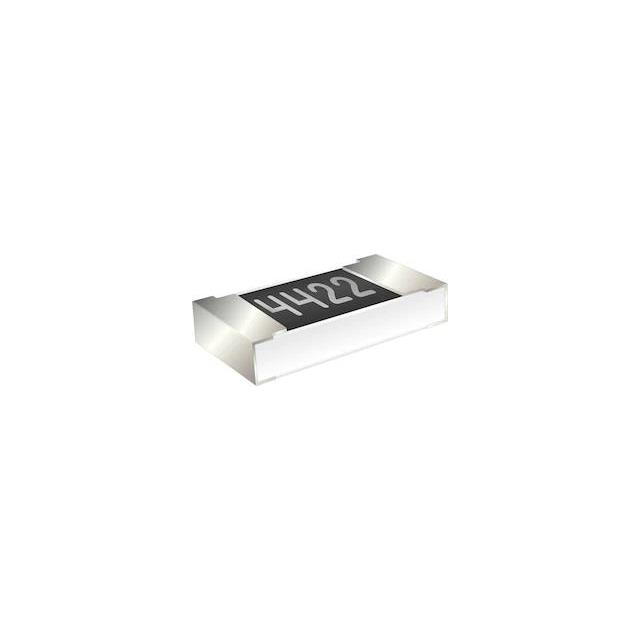

AGTF0402-PE-1502BT

AGTF0402-PE-1502BT

Part Number	AGTF0402-PE-1502BT
Manufacturer	Venkel LTD
Other Part Numbers	2679-AGTF0402-PE-1502BTTR-ND 2679-AGTF0402-PE-1502BTTR
Description	Auto Grade Thin Film,0402,1/16W,
Detailed Description	15 kOhms ±0.1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Anti-Corrosive, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		Venkel LTD
Series		AGTF
Packaging		Tape & Reel (TR)
Part Status		Active
Power (Watts)		0.063W, 1/16W
Tolerance		±0.1%
Features		Anti-Corrosive, Automotive AEC-Q200, Moisture Resistant
Package / Case		0402 (1005 Metric)
Temperature Coefficient		25ppm/°C
Size / Dimension		0.039" L x 0.020" W (1.00mm x 0.50mm)
Composition		Thin Film
Operating Temperature		-55°C ~ 155°C
Ratings		AEC-Q200
Number of Terminations		2
Supplier Device Package		0402
Height - Seated (Max)		0.014" (0.35mm)
Resistance		15 kOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AGTF Series

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0045
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
