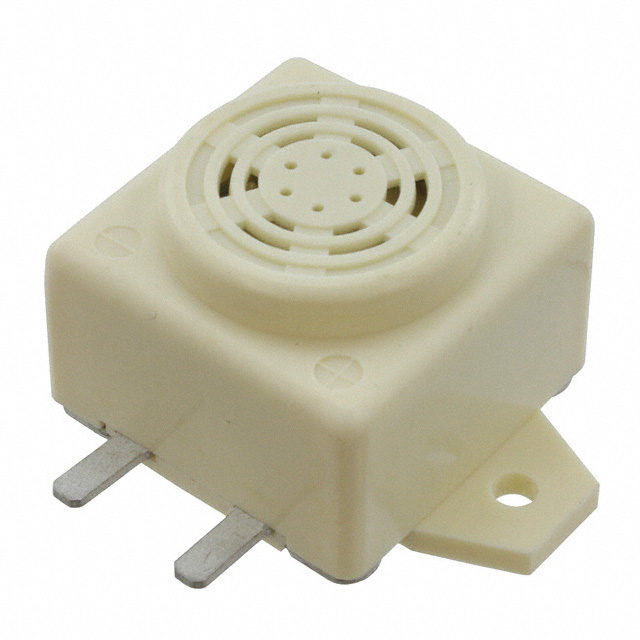

AI-2604-TF-12V-R _ Alarms, Buzzers, and Sirens_Audio Products

Part Number	AI-2604-TF-12V-R
Manufacturer	PUI Audio, Inc.
Other Part Numbers	668-1388-ND AI-2604-TF-12V-R-ND AI2604TF12VR Q4112601A 668-1388 Q4399681 6688021 Q5797590 Q6669348 Q5327912
Description	BUZZER MAGN 12V 26X26MM FLANGE
Detailed Description	Buzzers Indicator, Internally Driven Electromechanical/Magnetic 12 V 55mA 400Hz 95dB @ 12V, 10cm Panel Mount, Flange PC Pins
Manufacturer Standard Lead Time	18 weeks

Category		Audio Products Alarms, Buzzers, and Sirens
Manufacturer		PUI Audio, Inc.
Series		AI
Packaging		Tray
Part Status		Active
Size / Dimension		1.024" L x 1.024" W (26.00mm x 26.00mm)
Mounting Type		Panel Mount, Flange
Frequency		400Hz
Operating Temperature		-20°C ~ 60°C
Sound Pressure Level (SPL)		95dB @ 12V, 10cm
Current - Supply		55mA
Input Type		DC
Operating Mode		Single Tone
Voltage Range		8 ~ 16V
Technology		Electromechanical/Magnetic
Termination		PC Pins
Port Location		Top
Driver Circuitry		Indicator, Internally Driven
Height - Seated (Max)		0.787" (20.00mm)
Voltage - Rated		12 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8531.80.9041
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Tray	1	$4.39	$4.39
Total Amount: $4.39
