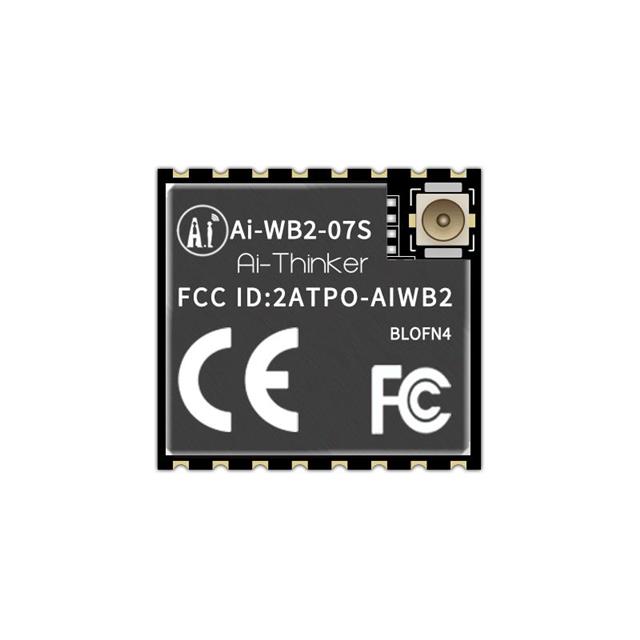

AI-WB2-07S _ RF Transceiver Modules and Modems_RF and Wireless

Part Number	AI-WB2-07S
Manufacturer	SHENZHEN ANXINKE TECHNOLOGY
Other Part Numbers	4570-AI-WB2-07S-ND 4570-AI-WB2-07STR 4570-AI-WB2-07STR-ND 98010013 4570-AI-WB2-07S 4570-AI-WB2-07SCT 4570-AI-WB2-07SCT-ND
Description	RF TXRX MOD BLUETOOTH I-PEX SMD
Detailed Description	Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 Transceiver Module 2.4GHz Antenna Not Included, I-PEX Surface Mount
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		RF and Wireless RF Transceiver Modules and Modems
Manufacturer		SHENZHEN ANXINKE TECHNOLOGY
Series
Packaging		Strip
Part Status		Active
Package / Case		16-SMD Module
Sensitivity		-98dBm
Mounting Type		Surface Mount
Frequency		2.4GHz
Memory Size		4MB Flash
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		2.7V ~ 3.6V
Power - Output		19dBm
Data Rate		72.2Mbps
Protocol		802.11b/g/n, Bluetooth v5.0
Current - Receiving		65mA
Current - Transmitting		230mA ~ 260mA
Antenna Type		Antenna Not Included, I-PEX
Utilized IC / Part		BL602
RF Family/Standard		Bluetooth, WiFi
Serial Interfaces		GPIO, I2C, PWM, SDIO, SPI, UART
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		AI-WB2-07S

ATTRIBUTE		DESCRIPTION
ECCN		5A002A1
HTSUS		8517.62.0090
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant

Can ship immediately.

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Strip	1	$3.41	$3.41
Total Amount: $3.41
