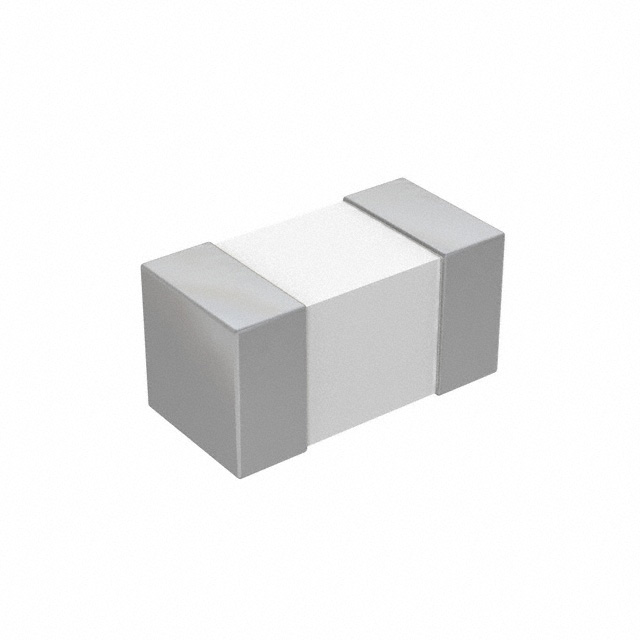

AIMC-0402HQ-6N8H-T _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	AIMC-0402HQ-6N8H-T
Manufacturer	Abracon
Other Part Numbers	AIMC-0402HQ-6N8H-T-ND
Description	FIXED IND 6.8NH 550MA 150MOHM SM
Detailed Description	6.8 nH Unshielded Multilayer Inductor 550 mA 150mOhm Max 0402 (1005 Metric)
Manufacturer Standard Lead Time	17 weeks

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Abracon
Series		AIMC-0402HQ
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±3%
Package / Case		0402 (1005 Metric)
Size / Dimension		0.039" L x 0.024" W (1.00mm x 0.60mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Multilayer
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		150mOhm Max
Q @ Freq		22 @ 250MHz
Frequency - Self Resonant		5GHz
Material - Core		Ceramic
Inductance Frequency - Test		250 MHz
Supplier Device Package		0402 (1005 Metric)
Height - Seated (Max)		0.026" (0.65mm)
Inductance		6.8 nH
Current Rating (Amps)		550 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
