AIRD-01-390K

AIRD-01-390K

Part Number	AIRD-01-390K
Manufacturer	Abracon
Other Part Numbers	535-11371-ND 535-11371 AIRD01390K
Description	FIXED IND 39UH 4A 46 MOHM TH

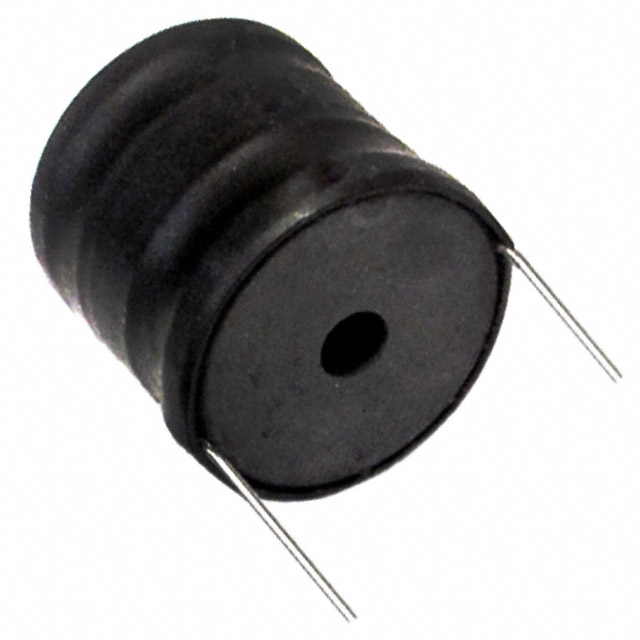

Detailed Description	39 µH Unshielded Drum Core, Wirewound Inductor 4 A 46mOhm Max Radial, Vertical Cylinder
Manufacturer Standard Lead Time	23 weeks

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Abracon
Series		AIRD-01
Packaging		Bulk
Part Status		Active
Tolerance		±10%
Package / Case		Radial, Vertical Cylinder
Size / Dimension		0.650" Dia (16.50mm)
Mounting Type		Through Hole
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-25°C ~ 85°C
DC Resistance (DCR)		46mOhm Max
Current - Saturation (Isat)		11.8A
Material - Core		Ferrite
Inductance Frequency - Test		1 kHz
Height - Seated (Max)		0.827" (21.00mm)
Inductance		39 µH
Current Rating (Amps)		4 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AIRD-01-390K
Datasheets		Abracon REACH
Datasheets		AIRD-01.pdf
Datasheets		AIRD-01 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
