AIRD-02-680K

AIRD-02-680K

Part Number
AIRD-02-680K
Manufacturer Abracon
Other Part Numbers
535-11409-ND
535-11409
AIRD02680K
Description FIXED IND 68UH 4.8A 53 MOHM TH

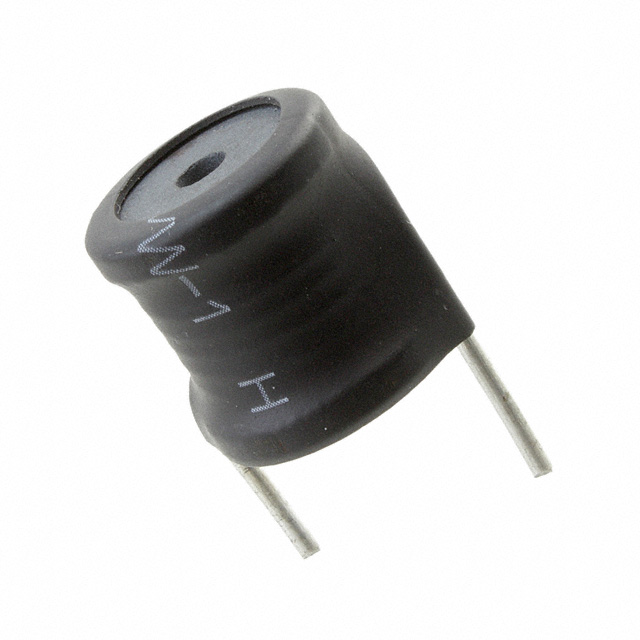

Detailed Description 68 µH Unshielded Drum Core, Wirewound Inductor 4.8 A 53mOhm Max Radial, Vertical Cylinder
Manufacturer Standard Lead Time 23 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Abracon
Series
AIRD-02
Packaging
Bulk
Part Status Active
Tolerance ±10%
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.827" Dia (21.00mm)
Mounting Type Through Hole
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -25°C ~ 85°C
DC Resistance (DCR) 53mOhm Max
Current - Saturation (Isat) 12A
Material - Core Ferrite
Inductance Frequency - Test 1 kHz
Height - Seated (Max) 0.827" (21.00mm)
Inductance 68 µH
Current Rating (Amps) 4.8 A

Documents & Media

RESOURCE TYPE LINK
Datasheets AIRD-02-680K
Datasheets Abracon REACH
Datasheets AIRD-02.pdf
Datasheets AIRD-02 Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

Bulk

QUANTITY UNIT PRICE EXT PRICE
800 $1.94 $1,552.00
