AIRD-03-181K

AIRD-03-181K

Part Number	AIRD-03-181K
Manufacturer	Abracon
Other Part Numbers	535-11334-ND AIRD03181K 2266-AIRD-03-181K 535-11334
Description	FIXED IND 180UH 5.5A 72 MOHM TH

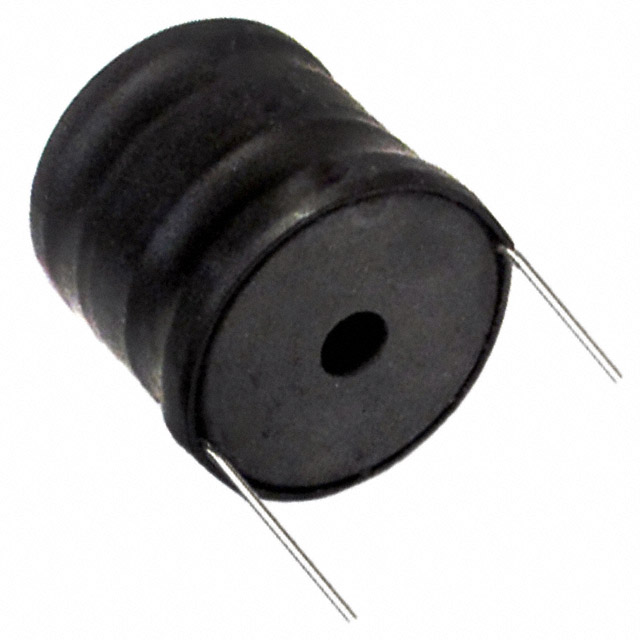

Detailed Description	180 µH Unshielded Drum Core, Wirewound Inductor 5.5 A 72mOhm Max Radial, Vertical Cylinder
Manufacturer Standard Lead Time	11 weeks

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Abracon
Series		AIRD-03
Packaging		Bulk
Part Status		Active
Tolerance		±10%
Package / Case		Radial, Vertical Cylinder
Size / Dimension		1.102" Dia (28.00mm)
Mounting Type		Through Hole
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-25°C ~ 85°C
DC Resistance (DCR)		72mOhm Max
Current - Saturation (Isat)		9.7A
Material - Core		Ferrite
Inductance Frequency - Test		1 Hz
Height - Seated (Max)		0.827" (21.00mm)
Inductance		180 µH
Current Rating (Amps)		5.5 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AIRD-03-181K
Datasheets		Abracon REACH
Datasheets		AIRD-03.pdf
Datasheets		AIRD-03 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
