AIRD-03-471K

Part Number
AIRD-03-471K
Manufacturer Abracon
Other Part Numbers
535-11339-ND
535-11339
AIRD03471K
Description FIXED IND 470UH 4A 187 MOHM TH

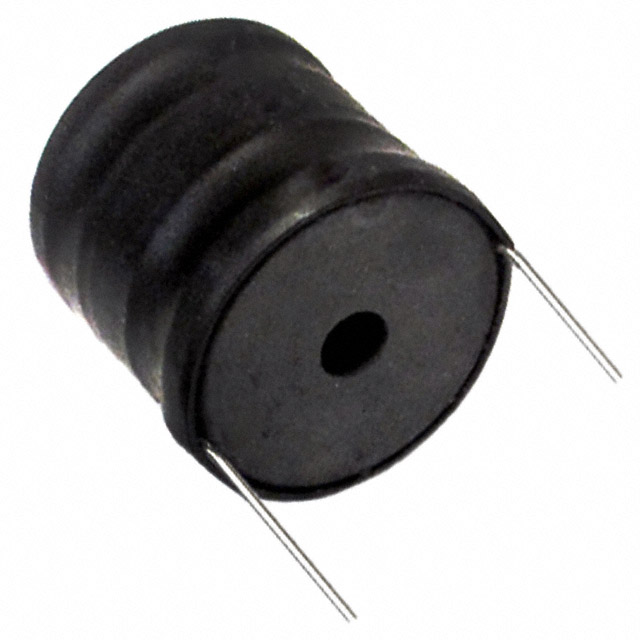

Detailed Description 470 µH Unshielded Drum Core, Wirewound Inductor 4 A 187mOhm Max Radial, Vertical Cylinder
Manufacturer Standard Lead Time 11 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Abracon
Series
AIRD-03
Packaging
Bulk
Part Status Active
Tolerance ±10%
Package / Case Radial, Vertical Cylinder
Size / Dimension 1.102" Dia (28.00mm)
Mounting Type Through Hole
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -25°C ~ 85°C
DC Resistance (DCR) 187mOhm Max
Current - Saturation (Isat) 6A
Material - Core Ferrite
Inductance Frequency - Test 1 Hz
Height - Seated (Max) 0.827" (21.00mm)
Inductance 470 µH
Current Rating (Amps) 4 A

Documents & Media

RESOURCE TYPE LINK
Datasheets AIRD-03-471K
Datasheets Abracon REACH
Datasheets AIRD-03.pdf
Datasheets AIRD-03 Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
