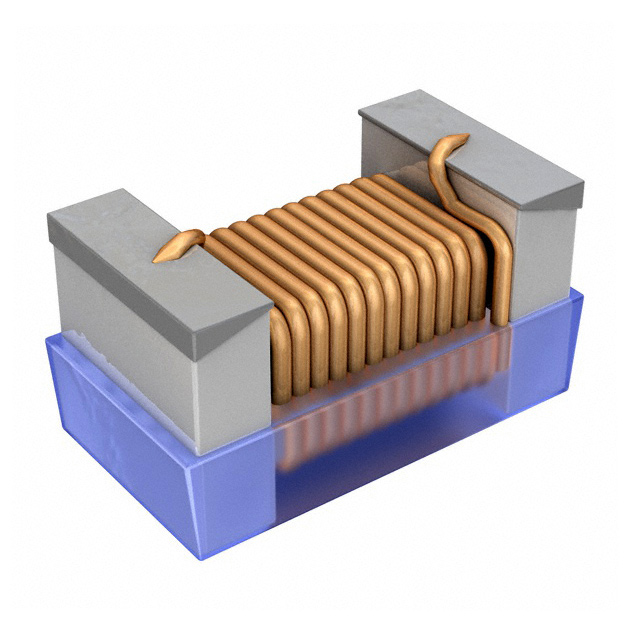

AISC-0402F-96NJ-T _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	AISC-0402F-96NJ-T
Manufacturer	Abracon
Other Part Numbers	535-12775-2-ND 535-12775-1-ND 535-12775-6-ND 535-12775-6 535-12775-1 535-12775-2
Description	FIXED IND 96NH 730MA 160MOHM SMD
Detailed Description	96 nH Unshielded Drum Core, Wirewound Inductor 730 mA 160mOhm Max Nonstandard
Manufacturer Standard Lead Time	13 weeks

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Abracon
Series		AISC-0402F
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		Nonstandard
Size / Dimension		0.043" L x 0.024" W (1.10mm x 0.60mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 85°C
DC Resistance (DCR)		160mOhm Max
Frequency - Self Resonant		1.1GHz
Material - Core		Ferrite
Inductance Frequency - Test		100 MHz
Supplier Device Package		0402
Height - Seated (Max)		0.028" (0.70mm)
Inductance		96 nH
Current Rating (Amps)		730 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
