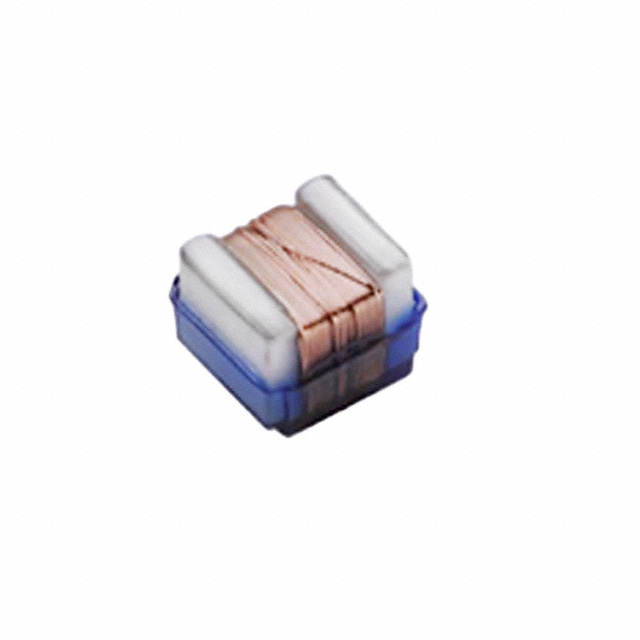

AISC-0603-R0018J-T

AISC-0603-R0018J-T

Part Number
AISC-0603-R0018J-T
Manufacturer Abracon
Other Part Numbers
535-10447-2-ND
535-10447-1-ND
535-10447-6-ND
535-10447-6
AISC0603R0018JT
535-10447-2
535-10447-1
Description FIXED IND 1.8NH 1A 43 MOHM SMD
Detailed Description 1.8 nH Unshielded Drum Core, Wirewound Inductor 1 A 43mOhm Max Nonstandard
Manufacturer Standard Lead Time 17 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Abracon
Series
AISC-0603
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±5%
Package / Case Nonstandard
Size / Dimension 0.071" L x 0.044" W (1.80mm x 1.12mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 43mOhm Max
Q @ Freq 18 @ 250MHz
Frequency - Self Resonant 6GHz
Material - Core Ceramic
Inductance Frequency - Test 250 MHz
Height - Seated (Max) 0.040" (1.02mm)
Inductance 1.8 nH
Current Rating (Amps) 1 A

Documents & Media

RESOURCE TYPE LINK
Datasheets AISC-0603-R0018J-T
Datasheets Abracon REACH
Datasheets AISC-0603 Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
Cut Tape (CT) 1 $0.25 $0.25
Total Amount: $0.25

Tape & Reel (TR)

QUANTITY UNIT PRICE EXT PRICE
3,000 $0.10 $300.00

Cut Tape (CT)

QUANTITY UNIT PRICE EXT PRICE
1 $0.25 $0.25
