AISC-0805F-220J-T _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	AISC-0805F-220J-T
Manufacturer	Abracon
Other Part Numbers	535-10522-2-ND 535-10522-1-ND 535-10522-6-ND AISC0805F220JT 535-10522-1 535-10522-2 535-10522-6
Description	FIXED IND 22UH 68MA 8 OHM SMD

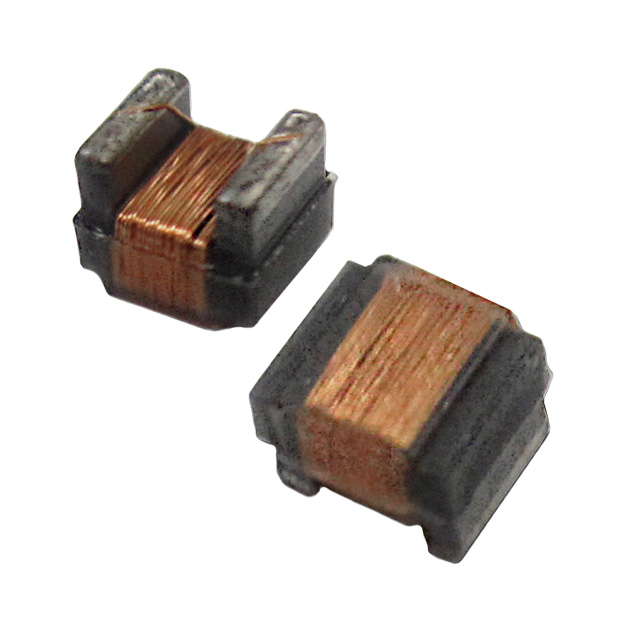

Detailed Description	22 µH Unshielded Drum Core, Wirewound Inductor 68 mA 8Ohm Max 0805 (2012 Metric)
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Abracon
Series		AISC-0805F
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		0805 (2012 Metric)
Size / Dimension		0.090" L x 0.068" W (2.29mm x 1.73mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		8Ohm Max
Q @ Freq		10 @ 2.5MHz
Frequency - Self Resonant		20MHz
Material - Core		Ferrite
Inductance Frequency - Test		2.5 MHz
Supplier Device Package		0805
Height - Seated (Max)		0.061" (1.55mm)
Inductance		22 µH
Current Rating (Amps)		68 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
