AISC-1008-R056J-T _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	AISC-1008-R056J-T
Manufacturer	Abracon
Other Part Numbers	535-10536-2-ND 535-10536-1-ND 535-10536-6-ND 535-10536-1 535-10536-6 AISC1008R056JT 535-10536-2
Description	FIXED IND 56NH 1A 180 MOHM SMD

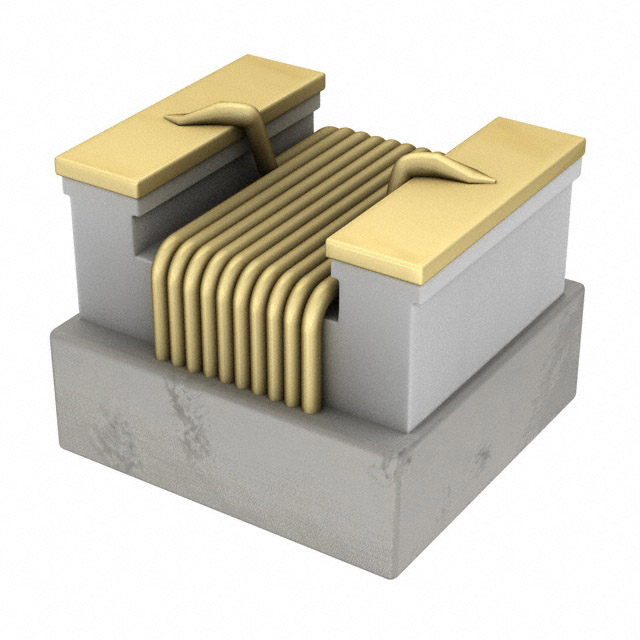

Detailed Description	56 nH Unshielded Drum Core, Wirewound Inductor 1 A 180mOhm Max 1008 (2520 Metric)
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Abracon
Series		AISC-1008
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		1008 (2520 Metric)
Size / Dimension		0.115" L x 0.110" W (2.92mm x 2.79mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		180mOhm Max
Q @ Freq		50 @ 350MHz
Frequency - Self Resonant		1.3GHz
Material - Core		Ceramic
Inductance Frequency - Test		50 MHz
Supplier Device Package		1008 (2520 Metric)
Height - Seated (Max)		0.090" (2.29mm)
Inductance		56 nH
Current Rating (Amps)		1 A

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
