AISC-1008-R18J-T _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	AISC-1008-R18J-T
Manufacturer	Abracon
Other Part Numbers	535-10542-2-ND 535-10542-1-ND 535-10542-6-ND 535-10542-6 535-10542-2 535-10542-1 AISC1008R18JT
Description	FIXED IND 180NH 620MA 700MOHM SM

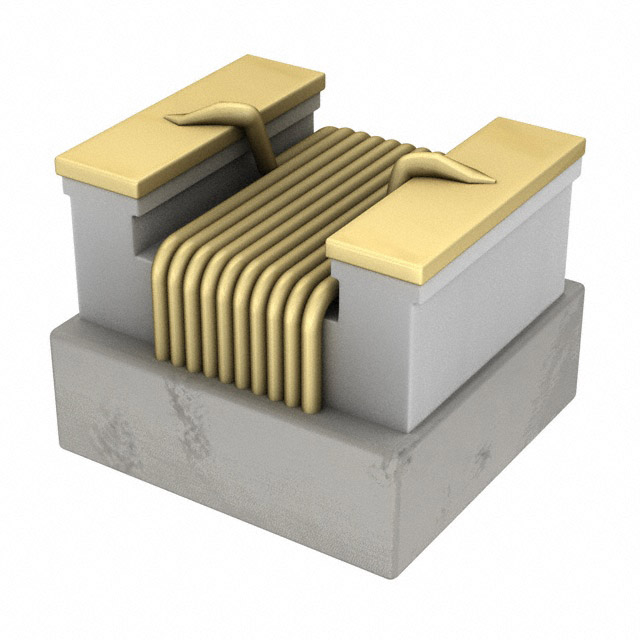

Detailed Description	180 nH Unshielded Drum Core, Wirewound Inductor 620 mA 700mOhm Max 1008 (2520 Metric)
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Abracon
Series		AISC-1008
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		1008 (2520 Metric)
Size / Dimension		0.115" L x 0.110" W (2.92mm x 2.79mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		700mOhm Max
Q @ Freq		50 @ 100MHz
Frequency - Self Resonant		750MHz
Material - Core		Ceramic
Inductance Frequency - Test		25 MHz
Supplier Device Package		1008 (2520 Metric)
Height - Seated (Max)		0.090" (2.29mm)
Inductance		180 nH
Current Rating (Amps)		620 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
