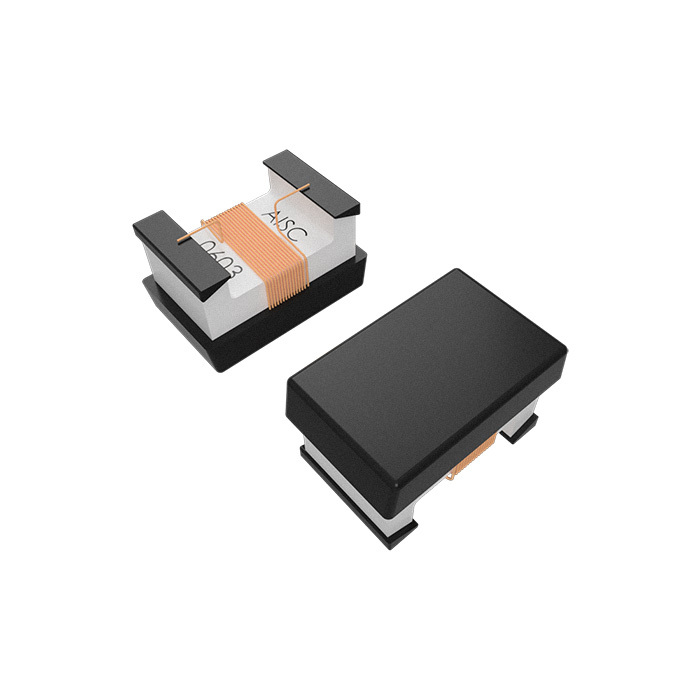

AISC-Q0603-R11G-T _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	AISC-Q0603-R11G-T
Manufacturer	Abracon
Other Part Numbers	535-AISC-Q0603-R11G-TTR-ND 535-AISC-Q0603-R11G-TTR
Description	FIXED IND 110NH 300MA 0.61OHM SM
Detailed Description	110 nH Unshielded Wirewound Inductor 300 mA 610mOhm Max 1008 (2520 Metric)
Manufacturer Standard Lead Time	19 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Abracon
Series		AISC-Q0603
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±2%
Package / Case		1008 (2520 Metric)
Size / Dimension		0.071" L x 0.044" W (1.80mm x 1.12mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		610mOhm Max
Q @ Freq		32 @ 150MHz
Frequency - Self Resonant		1.35GHz
Ratings		AEC-Q200
Material - Core		Ceramic
Inductance Frequency - Test		150 MHz
Supplier Device Package		0603
Height - Seated (Max)		0.040" (1.02mm)
Inductance		110 nH
Current Rating (Amps)		300 mA

RESOURCE TYPE		LINK
Datasheets		AISC-Q0603-R11G-T

ATTRIBUTE		DESCRIPTION
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
