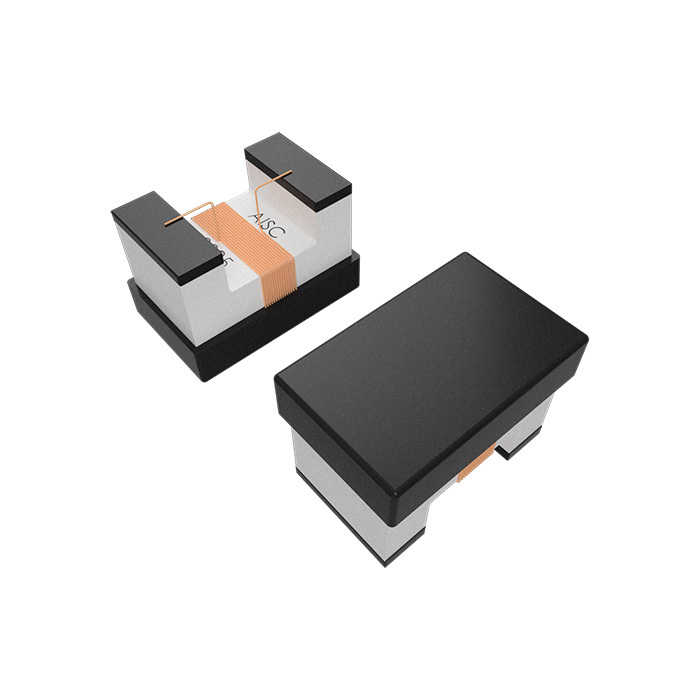

AISC-Q0805-2R2K-T _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	AISC-Q0805-2R2K-T
Manufacturer	Abracon
Other Part Numbers	535-AISC-Q0805-2R2K-TTR-ND 535-AISC-Q0805-2R2K-TTR
Description	FIXED IND 2.2UH 160MA 2.7OHM SMD
Detailed Description	2.2 µH Unshielded Wirewound Inductor 160 mA 2.7Ohm Max 1008 (2520 Metric)
Manufacturer Standard Lead Time	19 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Abracon
Series		AISC-Q0805
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±10%
Package / Case		1008 (2520 Metric)
Size / Dimension		0.090" L x 0.068" W (2.29mm x 1.73mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		2.7Ohm Max
Q @ Freq		16 @ 7.9MHz
Frequency - Self Resonant		60MHz
Ratings		AEC-Q200
Material - Core		Ceramic
Inductance Frequency - Test		7.9 MHz
Supplier Device Package		0805
Height - Seated (Max)		0.090" (2.29mm)
Inductance		2.2 µH
Current Rating (Amps)		160 mA

RESOURCE TYPE		LINK
Datasheets		AISC-Q0805-2R2K-T

ATTRIBUTE		DESCRIPTION
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
