AISC-Q0805-4R7J-T

AISC-Q0805-4R7J-T

Part Number
AISC-Q0805-4R7J-T
Manufacturer Abracon
Other Part Numbers
535-AISC-Q0805-4R7J-TTR-ND
535-AISC-Q0805-4R7J-TTR
Description FIXED IND 4.7UH 90MA 6.4OHM SMD

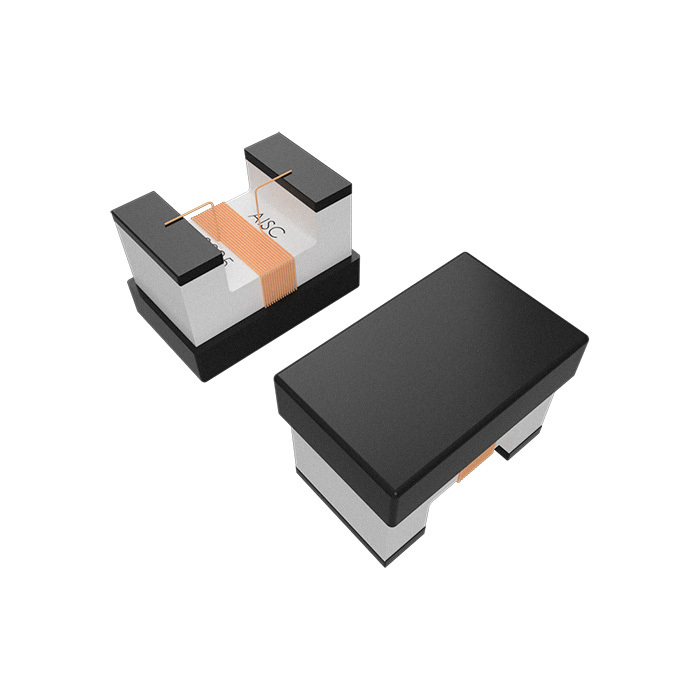

Detailed Description 4.7 µH Unshielded Wirewound Inductor 90 mA 6.4Ohm Max 1008 (2520 Metric)
Manufacturer Standard Lead Time 19 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Abracon
Series
AISC-Q0805
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±5%
Package / Case 1008 (2520 Metric)
Size / Dimension 0.090" L x 0.068" W (2.29mm x 1.73mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 6.4Ohm Max
Q @ Freq 15 @ 7.9MHz
Frequency - Self Resonant 40MHz
Ratings AEC-Q200
Material - Core Ceramic
Inductance Frequency - Test 7.9 MHz
Supplier Device Package 0805
Height - Seated (Max) 0.090" (2.29mm)
Inductance 4.7 µH
Current Rating (Amps) 90 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets AISC-Q0805-4R7J-T

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

Tape & Reel (TR)

QUANTITY UNIT PRICE EXT PRICE
2,000 $0.11 $220.00
