AISC-Q1008-R62K-T

AISC-Q1008-R62K-T

Part Number
AISC-Q1008-R62K-T
Manufacturer Abracon
Other Part Numbers
535-AISC-Q1008-R62K-TTR-ND
535-AISC-Q1008-R62K-TTR
Description FIXED IND 620NH 300MA 1.4OHM SMD

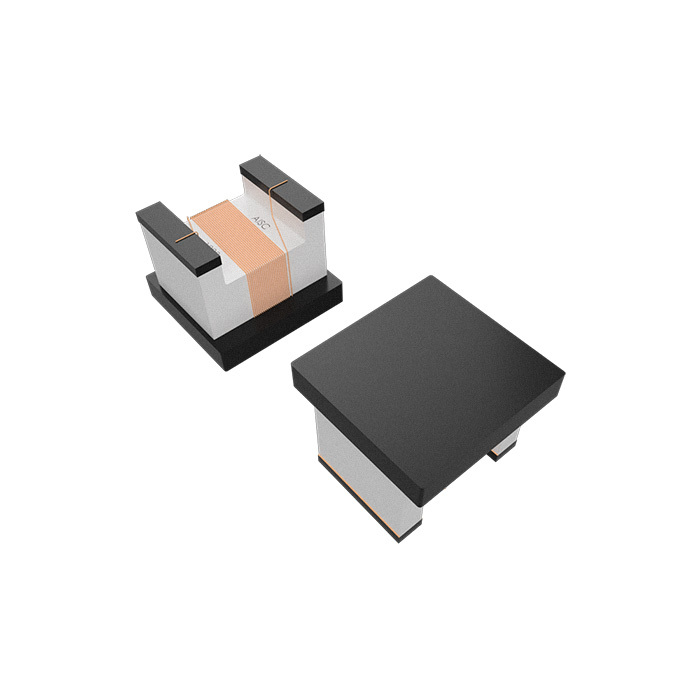

Detailed Description 620 nH Unshielded Wirewound Inductor 300 mA 1.4Ohm Max 1008 (2520 Metric)
Manufacturer Standard Lead Time 19 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Abracon
Series
AISC-Q1008
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±10%
Package / Case 1008 (2520 Metric)
Size / Dimension 0.115" L x 0.110" W (2.92mm x 2.79mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 1.4Ohm Max
Q @ Freq 45 @ 100MHz
Frequency - Self Resonant 375MHz
Ratings AEC-Q200
Material - Core Ceramic
Inductance Frequency - Test 25 MHz
Supplier Device Package 1008
Height - Seated (Max) 0.115" (2.92mm)
Inductance 620 nH
Current Rating (Amps) 300 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets AISC-Q1008-R62K-T

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

Tape & Reel (TR)

QUANTITY UNIT PRICE EXT PRICE
2,000 $0.14 $280.00
