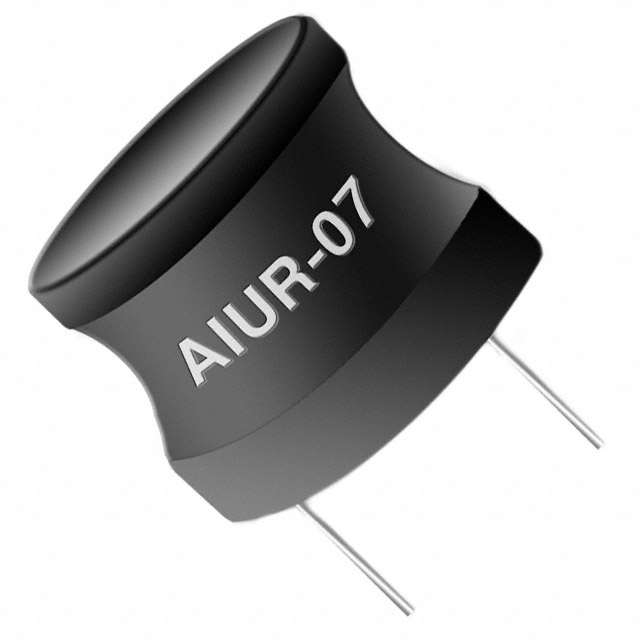

AIUR-07-221K

Part Number
AIUR-07-221K
Manufacturer Abracon
Other Part Numbers
AIUR-07-221K-ND
-AIUR-07-221K
AIUR07221K
2266-AIUR-07-221K
Description FIXED IND 220UH 260MA 1.39OHM TH
Detailed Description 220 µH Unshielded Drum Core, Wirewound Inductor 260 mA 1.39Ohm Max Radial, Vertical Cylinder
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Abracon
Series
AIUR-07
Packaging
Bulk
Part Status Active
Tolerance ±10%
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.236" Dia (6.00mm)
Mounting Type Through Hole
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -55°C ~ 85°C
DC Resistance (DCR) 1.39Ohm Max
Q @ Freq 47 @ 1kHz
Current - Saturation (Isat) 300mA
Material - Core Ferrite
Inductance Frequency - Test 1 kHz
Height - Seated (Max) 0.201" (5.10mm)
Inductance 220 µH
Current Rating (Amps) 260 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets AIUR-07-221K
Datasheets Abracon REACH
Datasheets AIUR-07.pdf
Datasheets AIUR-07 Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
