AIUR-12-471K

Part Number
AIUR-12-471K
Manufacturer Abracon
Other Part Numbers
AIUR-12-471K-ND
-AIUR-12-471K
Description FIXED IND 470UH 310MA 1.87OHM TH

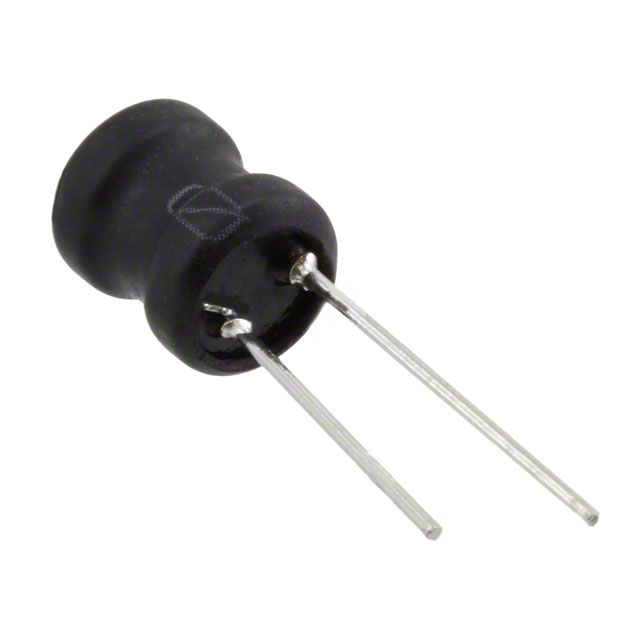

Detailed Description 470 µH Unshielded Drum Core, Wirewound Inductor 310 mA 1.87Ohm Max Radial, Vertical Cylinder
Datasheet Datasheet

Product Attributes

Category
Manufacturer Abracon
Series
AIUR-12
Packaging
Bulk
Part Status Obsolete
Tolerance ±10%
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.283" Dia (7.20mm)
Mounting Type Through Hole
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 1.87Ohm Max
Q @ Freq 30 @ 100kHz
Frequency - Self Resonant 1MHz
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.413" (10.50mm)
Inductance 470 µH
Current Rating (Amps) 310 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets AIUR-12-471K
Datasheets Abracon REACH
Datasheets AIUR-12.pdf

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
