AIUR-15-181K

AIUR-15-181K

Part Number	AIUR-15-181K
Manufacturer	Abracon
Other Part Numbers	AIUR-15-181K-ND -AIUR-15-181K
Description	FIXED IND 180UH 2.5A 130 MOHM TH

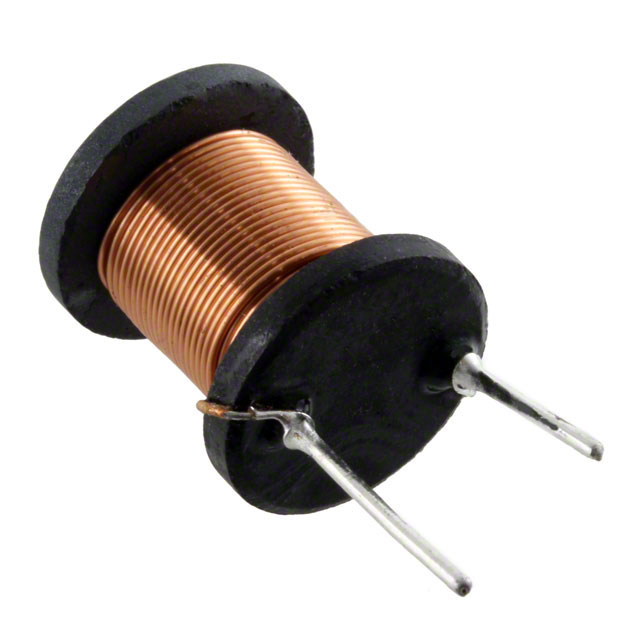

Detailed Description	180 µH Unshielded Drum Core, Wirewound Inductor 2.5 A 130mOhm Max Radial, Vertical Cylinder (Open)
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Abracon
Series		AIUR-15
Packaging		Bulk
Part Status		Active
Tolerance		±10%
Package / Case		Radial, Vertical Cylinder (Open)
Size / Dimension		0.709" Dia (18.00mm)
Mounting Type		Through Hole
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-25°C ~ 85°C
DC Resistance (DCR)		130mOhm Max
Material - Core		Ferrite
Inductance Frequency - Test		1 kHz
Height - Seated (Max)		0.787" (20.00mm)
Inductance		180 µH
Current Rating (Amps)		2.5 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AIUR-15-181K
Datasheets		AIUR-15,16 Series
Datasheets		Abracon REACH
Datasheets		AIUR-15.pdf
Datasheets		AIUR-15 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
