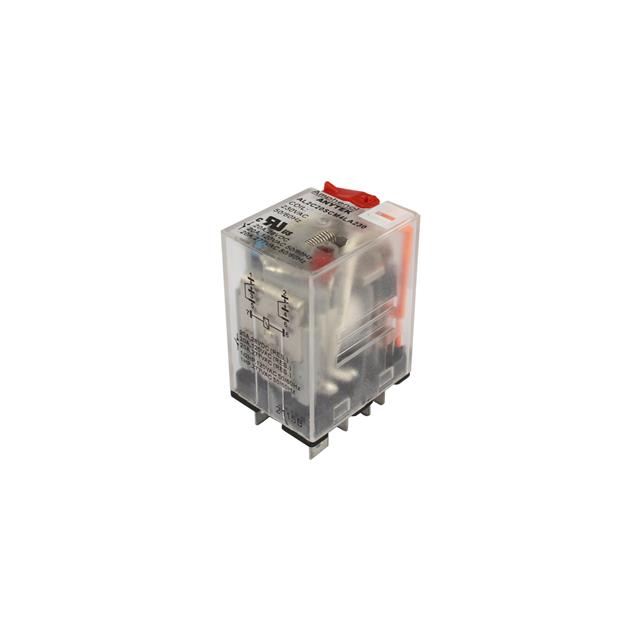

AL2C20PCM4LD02400G _ Power Relays, Over 2 Amps_Relays

Part Number	AL2C20PCM4LD02400G
Manufacturer	Anytek (Amphenol Anytek)
Other Part Numbers	1818-AL2C20PCM4LD02400G-ND 1818-AL2C20PCM4LD02400G
Description	RELAY GEN PURPOSE DPDT 20A 24V
Detailed Description	General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Manufacturer Standard Lead Time	14 weeks

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Anytek (Amphenol Anytek)
Series		AL
Packaging		Box
Part Status		Active
Features		Lighted Indicator, Mechanical Indicator, Test Button
Mounting Type		Socketable
Coil Voltage		24VDC
Operating Temperature		-25°C ~ 50°C
Termination Style		Plug In, Quick Connect - 0.187" (4.7mm)
Approval Agency		cURus, UL
Relay Type		General Purpose
Coil Current		36.9 mA
Coil Type		Non Latching
Contact Material		Silver Tin Oxide (AgSnO)
Contact Form		DPDT (2 Form C)
Contact Rating (Current)		20 A
Switching Voltage		277VAC, 28VDC - Max
Must Release Voltage		2.4 VDC
Must Operate Voltage		18 VDC
Operate Time		20 ms
Release Time		20 ms
Load - Max Switching		5540VA, 560W

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0050
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
