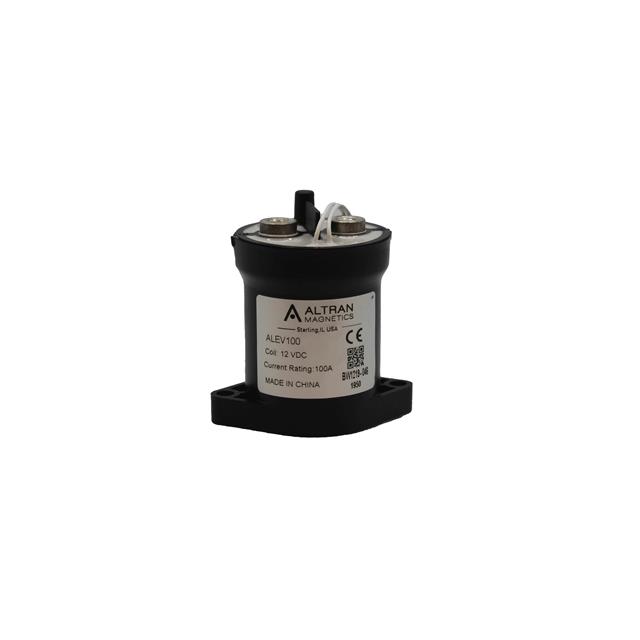

ALEV100-EAS _ Contactors (Electromechanical)_Relays

Part Number	ALEV100-EAS
Manufacturer	AMI (Altran Magnetics)
Other Part Numbers	2040-ALEV100-EAS-ND 2040-ALEV100-EAS
Description	ALEV100 SERIES 100A DC CONTACTOR
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Relays Contactors (Electromechanical)
Manufacturer		AMI (Altran Magnetics)
Series		ALEV100
Packaging		Box
Part Status		Active
Features		Auxiliary Contacts
Mounting Type		Chassis Mount
Coil Voltage		48VDC
Operating Temperature		-40°C ~ 85°C
Termination Style		Stud, Wire Leads
Coil Current		122 mA
Contact Form		SPST-NO (DM) (1 Form X)
Contact Rating (Current)		100 A
Switching Voltage		750VDC - Max
Must Release Voltage		4.8 VDC
Must Operate Voltage		33 VDC
Operate Time		25 ms
Release Time		10 ms
Coil Power		6W
Coil Resistance		392Ohms

RESOURCE TYPE		LINK
Datasheets		ALEV100-EAS

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0045
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
