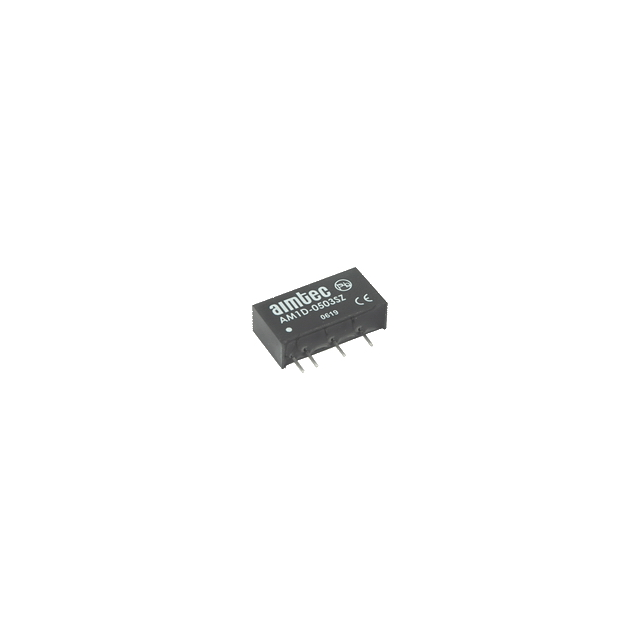

AM1D-1205SH40Z _ DC DC Converters_Power Supplies

Part Number	AM1D-1205SH40Z
Manufacturer	Aimtec
Other Part Numbers	2721-AM1D-1205SH40Z-ND 2721-AM1D-1205SH40Z
Description	DC DC CONVERTER 5V 1W
Detailed Description	Isolated Module DC DC Converter 1 Output 5V 200mA 10.8V - 13.2V Input
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		Aimtec
Series		AM1D-Z (1W)
Packaging		Tube
Part Status		Active
Package / Case		7-SIP Module
Size / Dimension		0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 85°C
Applications		ITE (Commercial)
Voltage - Input (Max)		13.2V
Approval Agency		CE, cULus, cURus
Efficiency		79%
Current - Output (Max)		200mA
Voltage - Input (Min)		10.8V
Voltage - Output 1		5V
Power (Watts)		1 W
Number of Outputs		1
Voltage - Isolation		4 kV

RESOURCE TYPE		LINK
Datasheets		AM1D-1205SH40Z

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
