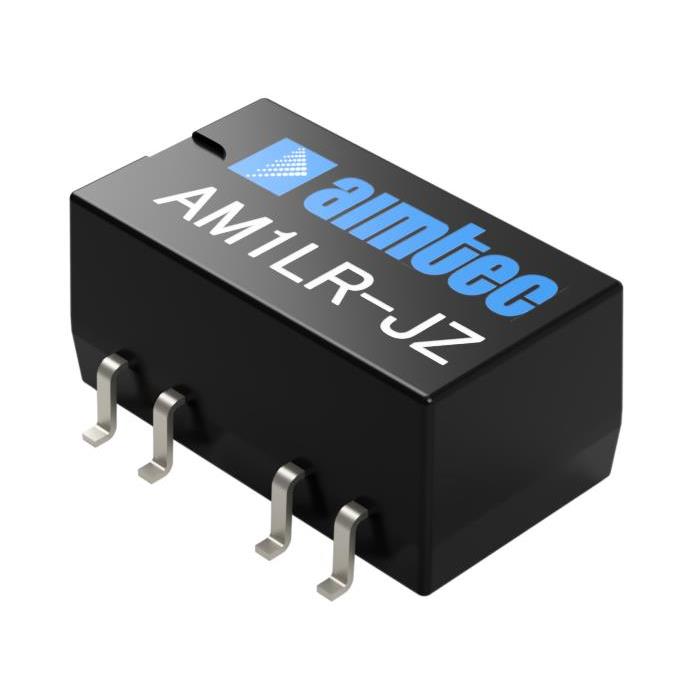

AM1LR-1215SJZTR

AM1LR-1215SJZTR

Part Number	AM1LR-1215SJZTR
Manufacturer	Aimtec
Other Part Numbers	2721-AM1LR-1215SJZTR-ND 2721-AM1LR-1215SJZTR
Description	1W DC/DC CONVERTER
Detailed Description	Isolated Module DC DC Converter 1 Output 15V 67mA 11.4V - 12.6V Input
Datasheet	Datasheet

Product Attributes

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		Aimtec
Series		AM1LR-JZ (1W)
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		10-SMD Module, 6 Leads
Size / Dimension		0.45" L x 0.28" W x 0.60" H (11.4mm x 7.1mm x 15.2mm)
Mounting Type		Surface Mount
Type		Isolated Module
Operating Temperature		-40°C ~ 85°C (With Derating)
Applications		Industrial
Voltage - Input (Max)		12.6V
Efficiency		71%
Current - Output (Max)		67mA
Voltage - Input (Min)		11.4V
Voltage - Output 1		15V
Power (Watts)		1 W
Number of Outputs		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AM1LR-1215SJZTR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant
