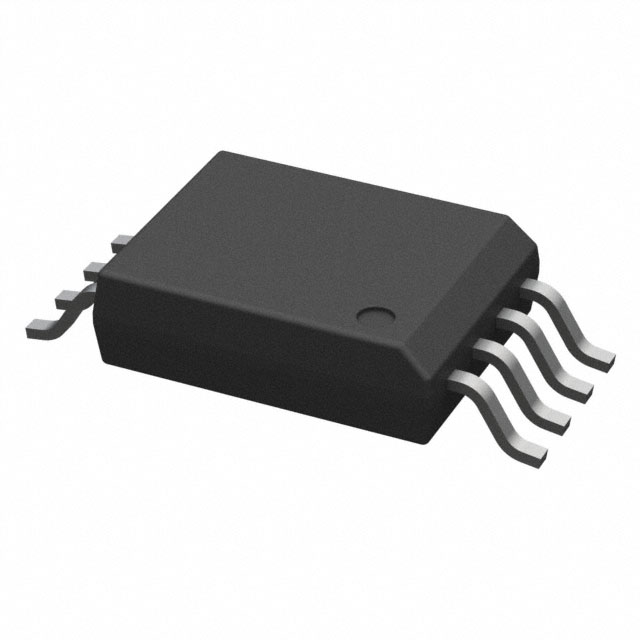

AMC1301SDWV

AMC1301SDWV

Part Number	AMC1301SDWV
Manufacturer	Texas Instruments
Other Part Numbers	296-49435-ND 296-49435
Description	IC OPAMP ISOLATION 1 CIRC 8SOIC
Detailed Description	Isolation Amplifier 1 Circuit 8-SOIC
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Linear Amplifiers Instrumentation, OP Amps, Buffer Amps
Manufacturer		Texas Instruments
Series
Packaging		Tube
Part Status		Active
Package / Case		8-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Amplifier Type		Isolation
Operating Temperature		-55°C ~ 125°C
Current - Supply		5.9mA
Gain Bandwidth Product		1 MHz
Current - Input Bias		30 µA
Voltage - Input Offset		50 µV
Supplier Device Package		8-SOIC
Number of Circuits		1
Current - Output / Channel		13 mA
Voltage - Supply Span (Min)		3 V
Voltage - Supply Span (Max)		5.5 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AMC1301 15/May/2020
Datasheets		AMC1301xx 28/Apr/2023

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.33.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 34

Can ship immediately.
