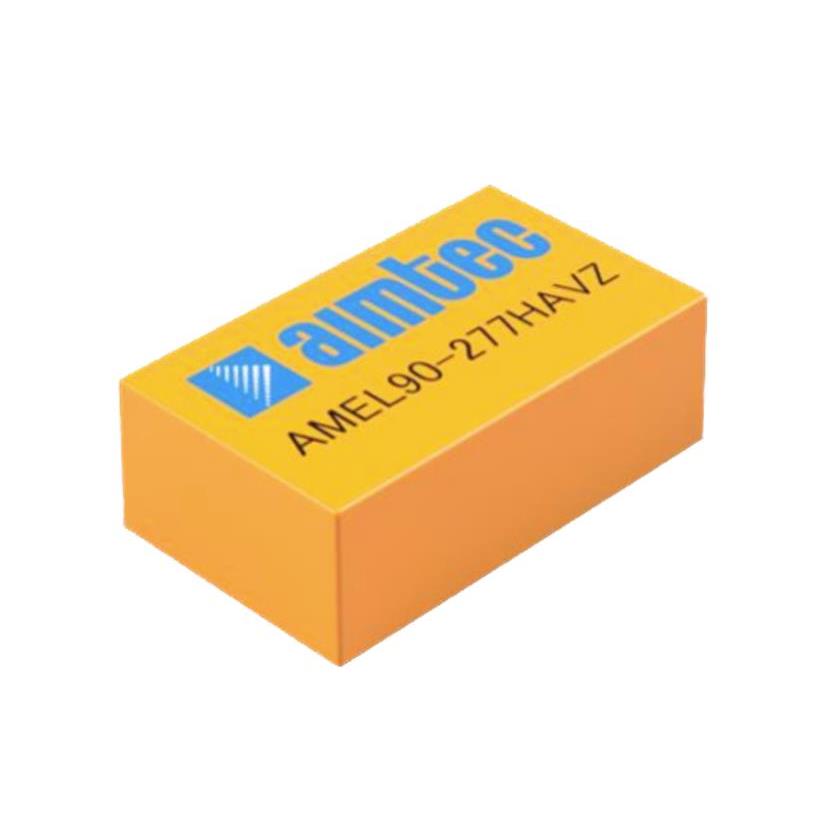

AMEL90-15S277HAVZ

AMEL90-15S277HAVZ

Part Number	AMEL90-15S277HAVZ
Manufacturer	Aimtec
Other Part Numbers	5245-AMEL90-15S277HAVZ-ND 2721-AMEL90-15S277HAVZ 2721-AMEL90-15S277HAVZ-ND 5245-AMEL90-15S277HAVZ
Description	AC/DC Converter 6V 90W
Detailed Description	Enclosed AC DC Converters 1 Output 15V 6A 85 ~ 305VAC, 100 ~ 430VDC Input
Datasheet	Datasheet

Product Attributes

Category		Power Supplies - Board Mount AC DC Converters
Manufacturer		Aimtec
Series		AMEL90-277HAVZ (90W)
Packaging		Tray
Part Status		Active
Package / Case		4-DIP Module
Size / Dimension		3.43" L x 2.05" W x 1.16" H (87.1mm x 52.1mm x 29.5mm)
Mounting Type		Through Hole
Voltage - Input		85 ~ 305VAC, 100 ~ 430VDC
Type		Enclosed
Operating Temperature		-40°C ~ 85°C
Applications		Industrial
Efficiency		92.5%
Current - Output (Max)		6A
Voltage - Output 1		15V
Number of Outputs		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AMEL90-15S277HAVZ

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
HTSUS		8504.40.9520
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		RoHS Compliant

In Stock: 8

Can ship immediately.
