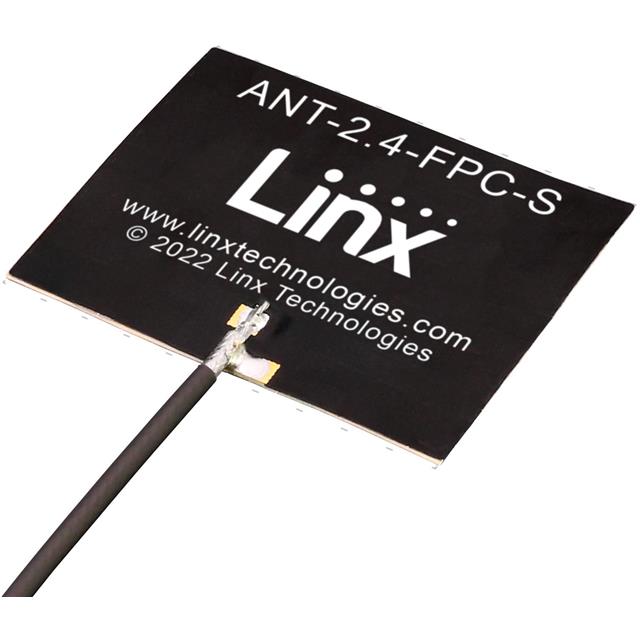

ANT-2.4-FPC-SH100M4

ANT-2.4-FPC-SH100M4

Part Number	ANT-2.4-FPC-SH100M4
Manufacturer	TE Connectivity Linx
Other Part Numbers	343-ANT-2.4-FPC-SH100M4-ND L9000067-01 343-ANT-2.4-FPC-SH100M4
Description	ANT 2.4 FPC 25X20 100 CBL MHF4
Detailed Description	2.45GHz Bluetooth, ISM, Wi-Fi, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.5GHz 4dBi MHF4 Adhesive
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		TE Connectivity Linx
Series		ANT-2.4-FPC-SH
Packaging		Bag
Part Status		Active
Features		Cable - 100mm
Mounting Type		Adhesive
Frequency Range		2.4GHz ~ 2.5GHz
Applications		Bluetooth, ISM, Wi-Fi, Zigbee™
Gain		4dBi
Termination		MHF4
Number of Bands		1
VSWR		1.4
Antenna Type		PCB Trace
Height (Max)		0.004" (0.10mm)
Frequency Group		UHF (2GHz ~ 3GHz)
Frequency (Center/Band)		2.45GHz
RF Family/Standard		802.15.4, Bluetooth, General ISM, WiFi
Power - Max		2 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ANT-2.4-FPC-SH100M4

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant

In Stock: 1953

Can ship immediately.
